| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,570 pcs
|
3570 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
361 pcs
|
361 pcs | On Request | 1 | On Request | On Request | 1528+ | On Request | On Request | |
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Width |

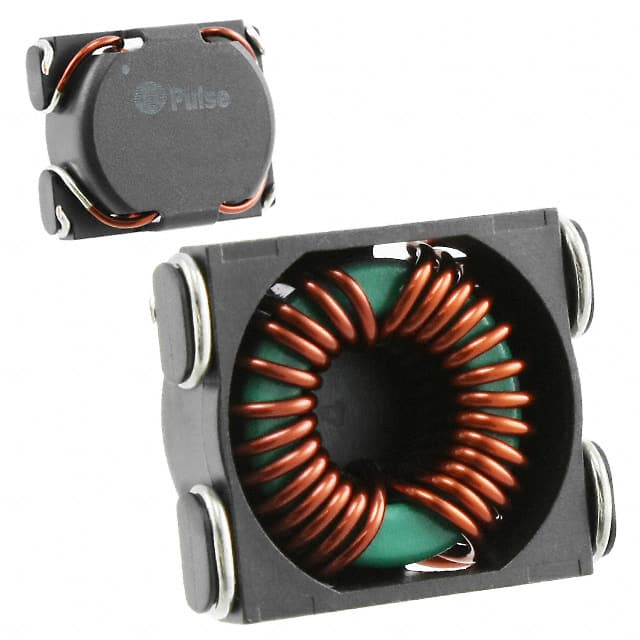

The Pulse Electronics P0502NLT is a common mode choke with a current rating of 14A and a maximum DC resistance of 8mOhm. It operates within a temperature range of -40°C to 120°C and has 2 lines.
This choke is designed for power line filtering applications and features a surface mountable package with 4 PC pads. Its dimensions are 30.99mm in length, 25.40mm in width, and a maximum height of 12.70mm.
The component is RoHS3 compliant and has an MSL rating of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating for the P0502NLT is 14A.
The maximum DC resistance (DCR) for the P0502NLT is 8mOhm.
The operating temperature range is -40°C to 120°C.
The P0502NLT is a surface mount device.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
