| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage - Nominal | |
| Output Voltage Range | |
| Power (Watts) | |
| Size / Dimension | |
| Switching Frequency | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width |

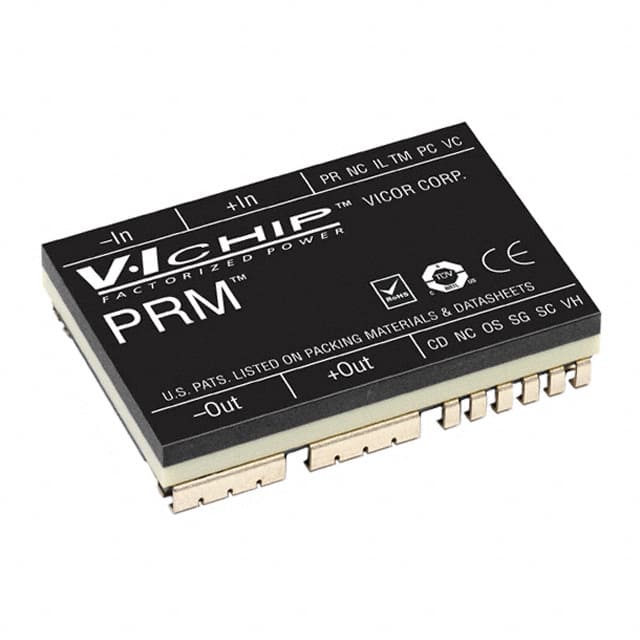

The Vicor P048F048T24AL is a non-isolated pre-regulator module (PRM) from the V•I Chip family, designed for Factorized Power Architecture (FPA) systems. It operates from a 36-75V input and provides a factorized bus output voltage adjustable from 26V to 55V, with a nominal 48V output. The module delivers up to 5A output current and 240W power with a typical efficiency of 96%. Switching frequency is 1.45 MHz.
Key features include remote on/off control, under-voltage lockout (UVLO), adaptive loop feedback, and zero-voltage switching (ZVS) buck-boost regulation. The PRM is intended for use with downstream VTM transformers to provide isolated point-of-load conversion. It is suitable for ITE (commercial) applications.
The module is housed in a surface-mount package measuring 32.5mm x 22.0mm x 6.7mm and weighs 15g. Operating temperature range is -40°C to 125°C (note: datasheet specifies -55°C to 125°C for M-grade variants). RoHS3 compliance is listed but unverified; MSL rating is unverified with a datasheet indication of MSL 5/6 for reflow.
36-75V.
26-55V (factorized bus).
240W.
96% typical.
-40°C to 125°C (datasheet specifies -55°C to 125°C for M-grade).
Surface mount module, dimensions 32.5mm x 22.0mm x 6.7mm.
Listed as RoHS3 compliant, but unverified.
