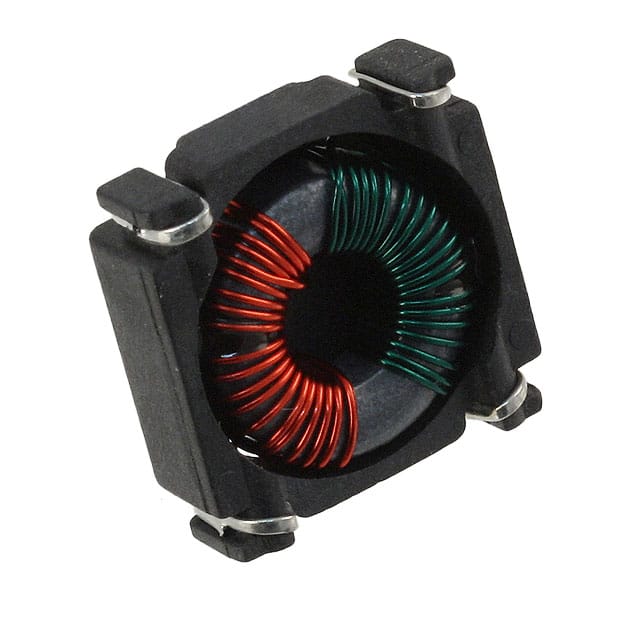

P0473NLT The Pulse Electronics P0473NLT is a 2-line common mode choke designed for power line filtering. It offers a maximum current rating of 1.63A and a DC resistance of 110mOhm.
Mfr Part #:

P0473NLT

Available from 4 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P0473NLT is a 2-line common mode choke designed for power line filtering. It offers a maximum current rating of 1.63A and a DC resistance of 110mOhm.
✓ Total Stock: 1,880 pcs
$ Price Range: $0.99

P0473NLT Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0473NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Lead Spacing
Length
Mounting Type
Number of Lines
Operating Temperature
Storage Temperature
Tape & Reel
Width
View Similar Products (0)

P0473NLT Description

Short technical summary and product information.

This Pulse Electronics P0473NLT is a common mode choke suitable for power line filtering applications. It features a 2-line design with a maximum current rating of 1.63A and a maximum DC resistance of 110mOhm.



The component operates within a temperature range of -40°C to 120°C. It is designed for surface mounting and comes in a Horizontal, 4 PC Pad package.



The dimensions of the choke are 12.70mm x 12.70mm with a maximum height of 5.46mm. It is RoHS3 Compliant, REACH Unaffected, and has a Moisture Sensitivity Level of 1.

P0473NLT Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics P0473NLT 2 Line Common Mode Choke
Subcategory: Power Line

P0473NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0473NLT Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0473NLT Features

  • 2-line common mode choke for power filtering.
  • 1.63A maximum current rating.
  • 110mOhm maximum DC resistance.
  • Surface mountable with 4 PC Pad package.
  • Operates from -40°C to 120°C.

P0473NLT Applications

  • Used in EMI noise filtering in power supplies
  • Suitable for communication equipment
  • Ideal for compact PCB designs
  • Applied in electronic systems requiring electromagnetic interference suppression

P0473NLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum current rating for the P0473NLT?

The P0473NLT has a maximum current rating of 1.63A.

What is the DC resistance of the P0473NLT?

The maximum DC resistance (DCR) for the P0473NLT is 110mOhm.

What is the operating temperature range for this common mode choke?

The P0473NLT operates between -40°C and 120°C.

How is the P0473NLT mounted?

The P0473NLT is designed for surface mounting.

What package type is the P0473NLT?

The P0473NLT comes in a Horizontal, 4 PC Pad package.
