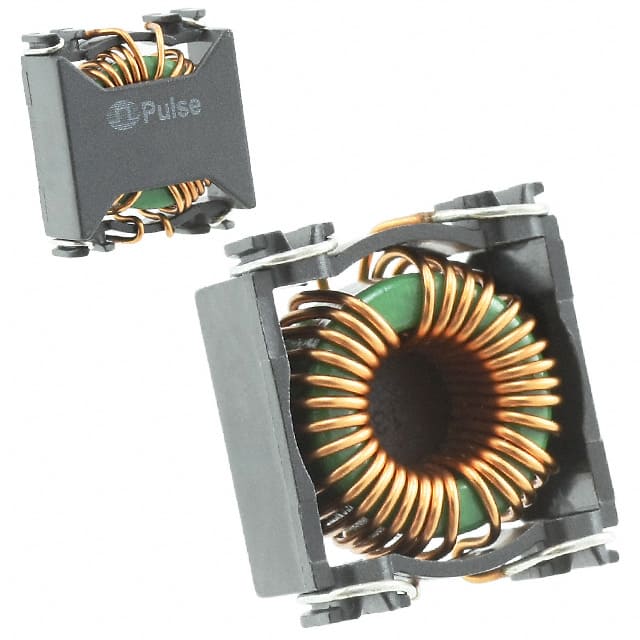

P0422NL The Pulse Electronics P0422NL is a common mode choke designed for power line filtering. It features a 4.7A current rating and a 0.77mH inductance.
Mfr Part #:

P0422NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics P0422NL is a common mode choke designed for power line filtering. It features a 4.7A current rating and a 0.77mH inductance.
✓ Total Stock: 72 pcs
$ Price Range: $0.99

P0422NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
72 pcs
On Request
72 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0422NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height
Height (Max)
Inductance
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

P0422NL Description

Short technical summary and product information.

The Pulse Electronics P0422NL is a surface mount common mode choke designed for power line filtering applications. It offers a current rating of 4.7A and a DC resistance (DCR) of 40mOhm maximum.



This component has an inductance of 0.77mH with a tolerance of ±35%. It operates within a temperature range of -40°C to 120°C. The choke has 2 lines and is housed in a Horizontal, 4 PC Pad package.



Key electrical specifications include a maximum current rating of 4.7A and a maximum DC resistance of 40mOhm. The inductance is 0.77mH. The operating temperature range is -40°C to 120°C.



Mechanically, the component measures 19.56mm in length and 17.02mm in width, with a maximum height of 9.91mm. It is designed for surface mount applications.

P0422NL Quick Information

Product Type: Common Mode Choke
Canonical Name: Pulse Electronics P0422NL Common Mode Choke

P0422NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0422NL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0422NL Features

  • Surface mount common mode choke.
  • Rated for 4.7A maximum current.
  • Features 0.77mH inductance.
  • Low DC resistance of 40mOhm max.
  • Operates from -40°C to 120°C.

P0422NL Applications

  • Used in electromagnetic interference filtering
  • Suitable for power supply noise suppression
  • Ideal for communication equipment
  • Fits in compact surface-mount designs

P0422NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the P0422NL?

The inductance of the P0422NL is 0.77mH with a tolerance of ±35%.

What is the maximum current rating for the P0422NL?

The P0422NL has a maximum current rating of 4.7A.

What is the DC resistance (DCR) of the P0422NL?

The maximum DC resistance (DCR) for the P0422NL is 40mOhm.

What is the operating temperature range for this common mode choke?

The P0422NL operates within a temperature range of -40°C to 120°C.

What type of package is the P0422NL in?

The P0422NL is in a Horizontal, 4 PC Pad package.

How is the P0422NL mounted?

The P0422NL is designed for Surface Mount.
