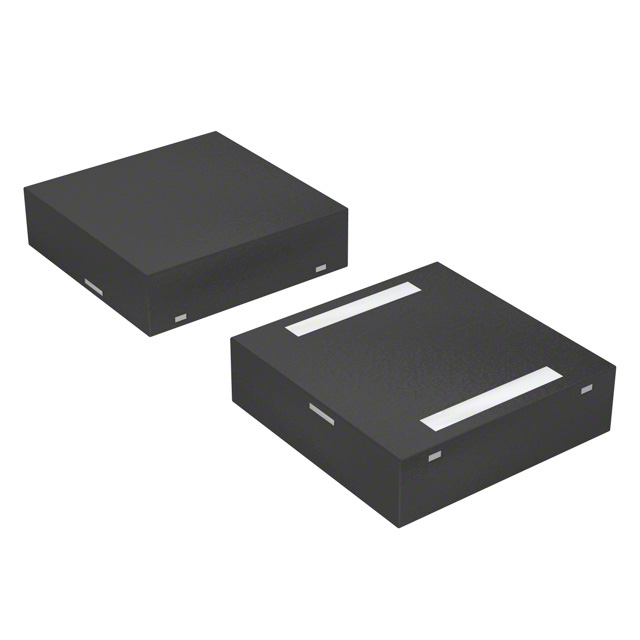

P0080Q22CLRP Littelfuse P0080Q22CLRP is a SIDACtor protection thyristor with 6V off-state voltage and 25V switching voltage. It offers 100A peak pulse current in a 2-TDFN surface mount package.
Mfr Part #:

P0080Q22CLRP

Available from 3 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse P0080Q22CLRP is a SIDACtor protection thyristor with 6V off-state voltage and 25V switching voltage. It offers 100A peak pulse current in a 2-TDFN surface mount package.
✓ Total Stock: 5,629 pcs
$ Price Range: $0.77 - $2.43

P0080Q22CLRP Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,010 pcs
On Request
5010 pcs On Request 1 On Request On Request 12+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
426 pcs
On Request
426 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
193 pcs
On Request
193 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

P0080Q22CLRP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Current
Mounting Type
Number of Elements
Storage Temperature
Supplier Device Package
Switching Voltage
Tape & Reel
Voltage
View Similar Products (0)

P0080Q22CLRP Description

Short technical summary and product information.

Littelfuse P0080Q22CLRP is a SIDACtor protection thyristor from the Q2L series, designed for broadband overvoltage protection. It features a low capacitance of 35 pF to 75 pF to minimize signal distortion in high-speed data lines.



Key electrical characteristics include an off-state voltage (VDRM) of 6V, switching voltage (VS) of 25V, holding current (IH) of 50 mA, and switching current (IS) of 800 mA. The on-state voltage (VT) is 5V maximum at 2.2A. The device is rated for a peak pulse current of 100A.



The device is housed in a compact 2-TDFN (3x3 QFN) surface mount package, suitable for space-constrained designs. It operates over a junction temperature range of -40°C to +150°C and is RoHS3 compliant.



This thyristor is ideal for protecting broadband equipment such as DSL modems, routers, and set-top boxes, as it complies with global standards like TIA-968-A. The low profile and small footprint make it suitable for high-density board layouts.

P0080Q22CLRP Quick Information

Product Type: SIDACtor Protection Thyristor
Series: Q2L
Canonical Name: Littelfuse P0080Q22CLRP SIDACtor Protection Thyristor
Subcategory: TVS Thyristors

P0080Q22CLRP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

P0080Q22CLRP Estimated Pricing

Qty Low High
1+ $2.43 $2.43
10+ $1.58 $1.58
100+ $1.09 $1.09
500+ $0.88 $0.88
1,000+ $0.82 $0.82
2,500+ $0.79 $0.79
5,000+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

P0080Q22CLRP Features

  • Low capacitance of 35 pF minimum for broadband signals.
  • 100A peak pulse current rating for surge protection.
  • Surface mount 2-TDFN package for compact design.
  • RoHS3 compliant with lead-free termination.

P0080Q22CLRP Applications

  • Protects high density broadband equipment from transients.
  • Suitable for TIA-968-A compliant telecom designs.
  • Used in isolated loop circuit protection applications.
  • Ideal for QFN surface mount layouts in small devices.

P0080Q22CLRP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the off-state voltage (VDRM) of the P0080Q22CLRP?

6 V.

What is the peak pulse current rating of the P0080Q22CLRP?

100 A.

What is the package type for the P0080Q22CLRP?

2-TDFN (3x3 QFN) surface mount package.

What is the switching voltage (VS) of the P0080Q22CLRP?

25 V.

What is the holding current (IH) of the P0080Q22CLRP?

50 mA.

What is the operating junction temperature range?

-40°C to +150°C.

What is the capacitance range of the P0080Q22CLRP?

35 pF to 75 pF at 1MHz with 2V bias.
