| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Voltage Range | |
| Width |

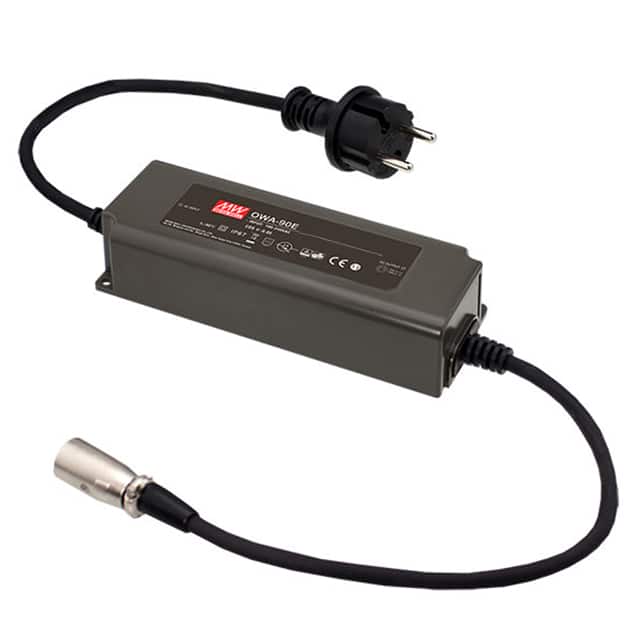

The Mean Well USA OWA-90E-24 is a 90W AC/DC external power supply designed for demanding applications. This Class II unit operates with a universal AC input range of 90-264VAC and provides a stable 24V output at 3.75A.
Engineered for reliability, the OWA-90E-24 boasts a high efficiency of up to 91% and a low no-load power consumption of less than 0.15W, meeting Energy Level VI standards. It is built to withstand harsh environments, featuring an IP67 rating for moisture and dust resistance, and operates across a wide temperature range from -40°C to +70°C. Protection features include short circuit, over current, over voltage, and over temperature.
This power supply is suitable for various applications including ITE (Commercial), household appliances, battery charging, and general electronic products in dusty or humid environments. Its fanless design ensures quiet operation and enhanced heat dissipation through free air convection. The unit comes with a 5-year warranty.
The input voltage range is 90-264 VAC at 47-63 Hz.
-40°C to 70°C.
Output: 24V DC at 3.75A, 90W.
Typical efficiency is 91%.
Short circuit, over current, over voltage, and over temperature protection with hiccup mode and automatic recovery.
5 years.
3044.3K hours minimum per Telcordia SR-332.
