| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Voltage | |
| Width |

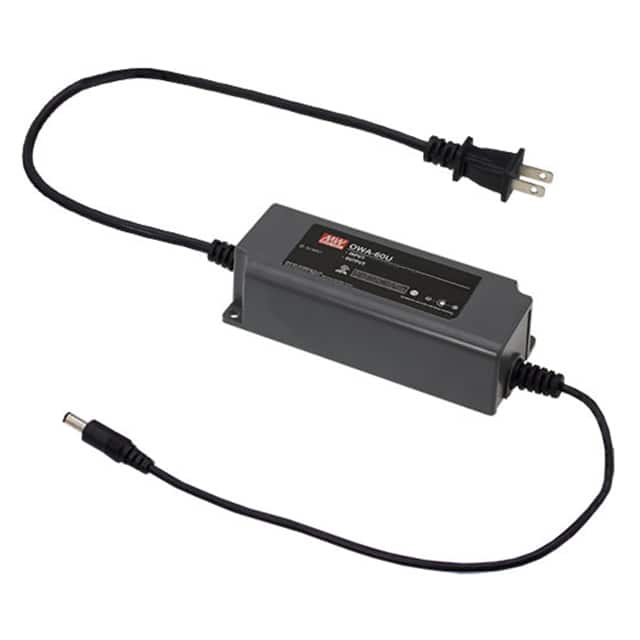

The Mean Well OWA-60U-15 is a 60W single-output AC/DC external power supply designed for LED lighting and general electronic products. It operates with a universal AC input range of 90-264VAC and provides a stable 15V output at 4A.
This power adapter boasts high efficiency up to 94% and a low no-load power consumption of less than 0.15W, meeting Energy efficiency Level VI standards. It is designed for durability with a fully isolated plastic case and an IP67 waterproof rating, making it suitable for dusty or humid environments.
The OWA-60U-15 features a fanless design for silent operation and cooling by free air convection. It includes comprehensive protections such as short circuit, over current, over voltage, and over temperature protection. The unit is certified with UL Listed for dry and damp locations and comes with a 5-year warranty.
Applications include indoor LED lighting, decorative LED lighting, office LED lighting, and other general electronic products requiring a reliable power source in challenging environmental conditions.
15V DC.
-35°C to +70°C.
130.0mm x 53.0mm x 35.0mm (5.12" x 2.09" x 1.38").
90 VAC to 264 VAC (full range).
Typical efficiency is 91% per datasheet, with maximum efficiency up to 94% per manufacturer.
cULus and UL.
5 years.
