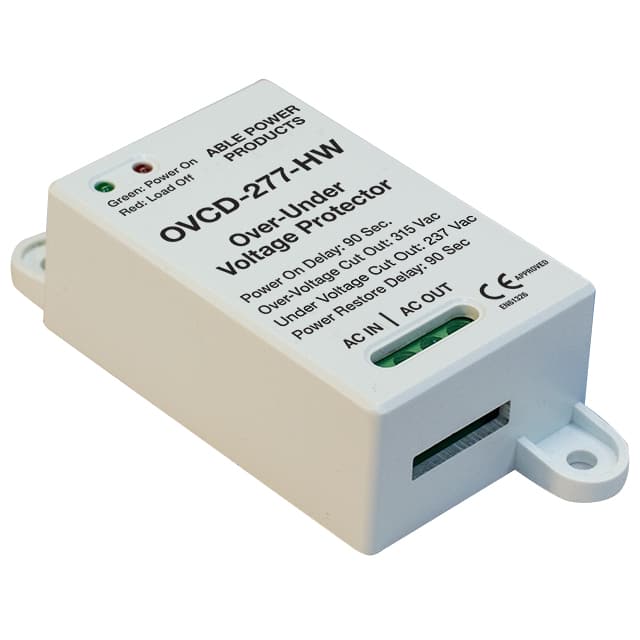

The ABLE Power Products OVCD-277-HW is an Over Voltage and Under Voltage Cut-Off device designed to extend the life of fixtures by eliminating temporary over and under voltages. It automatically shuts off power when voltage deviates significantly and resets when normal voltage returns, thanks to its patented Safe Restore™ technology.
Key specifications include a 230 VAC working voltage, a 7A working current, and a rated frequency of 47-63 Hz. The device features indicator LEDs for input power (Green) and over/under voltage conditions (Red). It has a reset time of 90 seconds and a power-on delay of 90 seconds. The operating temperature range is -40°C to +85°C.
This protector is designed for tab mounting and uses 18-16 AWG wire for connections. Its dimensions are 38mm x 66mm, and it weighs approximately 55g. The IP rating is 10.
This component is suitable for applications where stable voltage is critical to prevent damage to sensitive electronic components in fixtures.
The working voltage is 230 VAC.
The reset time is 90 seconds.
The operating temperature range is -40°C to +85°C.
The IP rating is 10.
It uses 18-16 AWG multi-strand soft wire.
Safe Restore™ is a technology that allows the unit to auto-reset when voltage returns to normal after an over/under voltage condition.
