| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

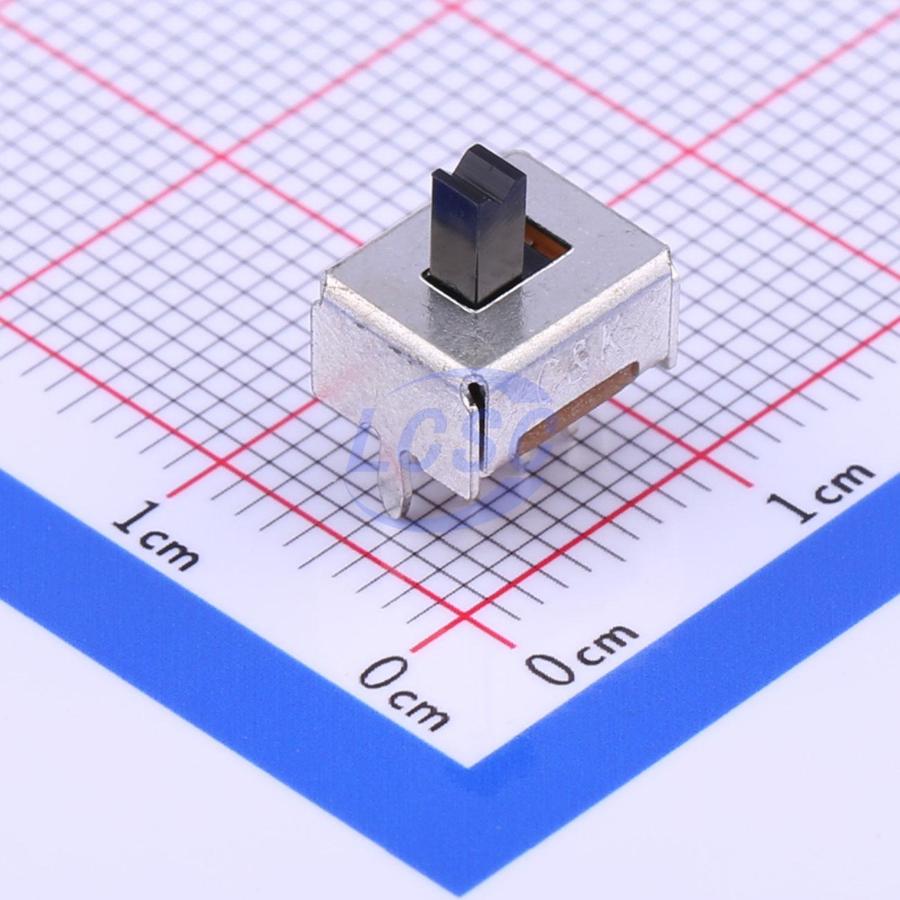

The C&K Components OS202011MS2QS1 is a miniature slide switch from the OS series, featuring a DPDT (Double Pole, Double Throw) configuration. It is designed for through-hole mounting with PC pin termination. This switch operates at a current rating of 100mA and a voltage rating of 12V.
Key electrical specifications include shorting (MBB) contact timing and a contact finish of silver over copper alloy. The switch has a mechanical and electrical life of 10,000 cycles. It is constructed with a phenolic resin base, POM actuator, and SPCC Sn plated housing.
The operating temperature range for this switch is specified as -40°C to 85°C, though an alternative range of -30°C to 70°C is also noted. The OS series is made with Halogen-free materials and is RoHS compliant. It is suitable for applications in test & measurement equipment, computer peripherals & network products, and consumer products.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OS202011MS2QS1 slide switch has a DPDT circuit configuration.
This slide switch is rated for 100mA at 12V.
The operating temperature range is -40°C to 85°C.
Yes, the OS202011MS2QS1 features shorting (MBB) contacts.
The OS202011MS2QS1 slide switch is designed for through-hole mounting.
The OS202011MS2QS1 is RoHS3 Compliant.
Yes, the OS202011MS2QS1 is made with Halogen-free materials.
