| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,051 pcs
|
1051 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

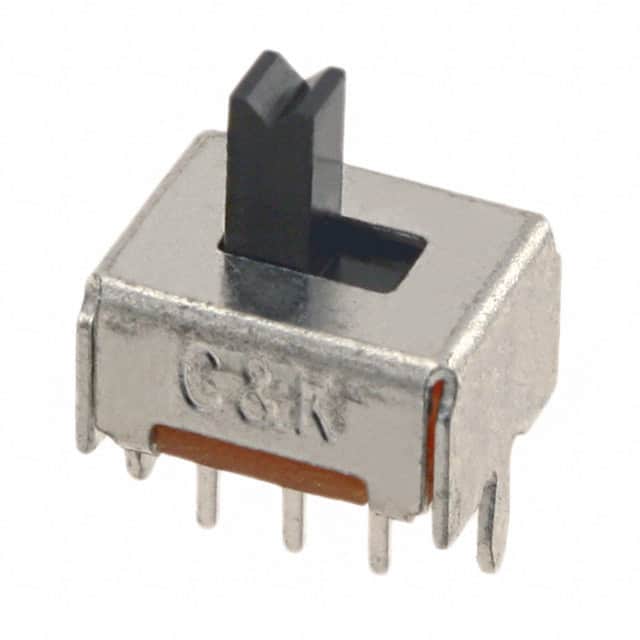

The C&K Components OS202011MS2QN1 is a miniature slide switch from the OS Series. This DPDT (Double Pole Double Throw) switch offers an On-On function with non-shorting contacts. It is rated for 100mA at 12V and has a mechanical and electrical life of 10,000 cycles.
The switch is designed for through-hole mounting and features PC pin termination style. The contact material is copper alloy with silver plating, and it operates within a temperature range of -40°C to 85°C. The housing is SPCC Sn plated, and the base is made of Phenolic Resin.
This series is noted for being made with Halogen-free materials and is RoHS compliant. Applications for this series include test & measurement equipment, computer peripherals & network products, and consumer products.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OS202011MS2QN1 is a DPDT (Double Pole Double Throw) slide switch.
This slide switch is rated for 100mA (DC) and 12V (DC).
The mechanical and electrical life of this switch is 10,000 cycles.
The operating temperature range is -40°C to 85°C.
This switch is designed for through-hole mounting.
The contact finish is silver.
Yes, the OS202011MS2QN1 is RoHS3 Compliant.
