| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

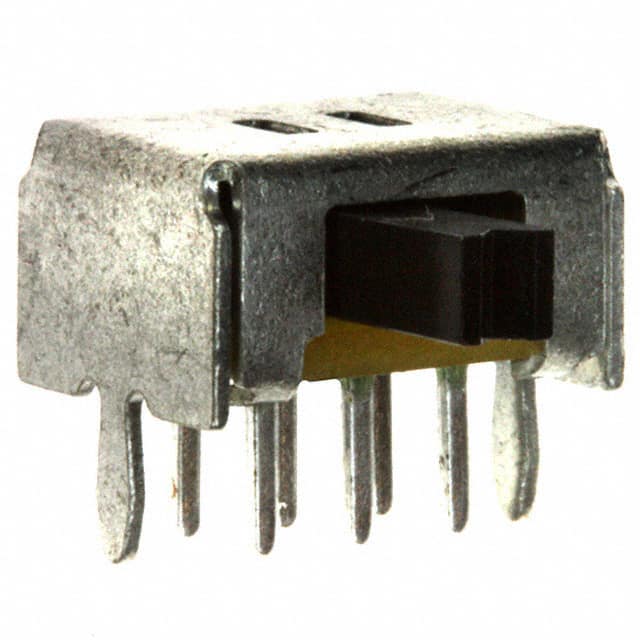

The C&K Components OS202011MA0QS1 is a miniature slide switch from the OS Series. This DPDT (Double Pole, Double Throw) switch offers an On-On function with a current rating of 100mA at 12V.
Key electrical specifications include a contact resistance of 20 mΩ or less and an insulation resistance of 100 MΩ min. at 500 VDC. The switch has a dielectric strength of 500 VAC for 1 minute and a mechanical and electrical life of 10,000 cycles. The operating temperature range is -40°C to 85°C.
This slide switch is designed for through-hole, right-angle mounting and features PC pin termination. The contact material is a copper alloy with a silver finish. The housing is SPCC Sn plated, and the base is made of Phenolic Resin. The actuator is standard type.
The OS series is noted for being made with Halogen-free materials and is RoHS compliant. These switches are suitable for applications in test & measurement equipment, computer peripherals & network products, and consumer products.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a DPDT (Double-Pole Double-Throw) circuit configuration.
The switch function is On-On.
The voltage rating is 12V.
The current rating is 100mA.
The contact resistance is 20 milliohms or less.
The operating temperature range is from -40°C to 85°C.
RoHS3 compliance status is unverified; treat as low-confidence.
