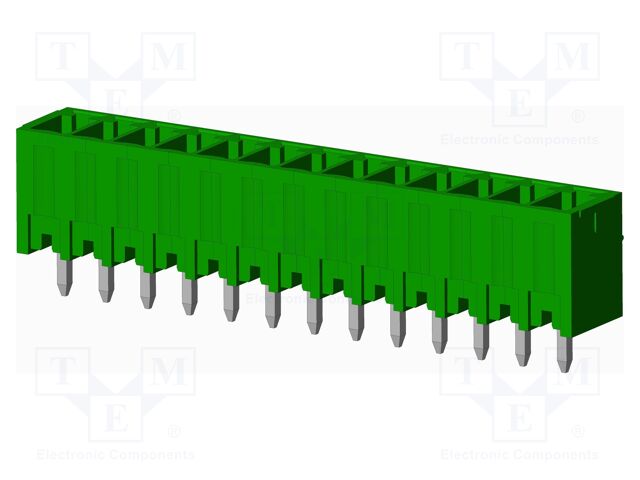

OQ1312500000G Terminal block header with 13 positions, 3.5mm pitch, vertical orientation, through-hole mounting. Rated 10A and 300V.
Mfr Part #:

OQ1312500000G

Available from 1 distributors
Mfr Name: Amphenol Anytek
Amphenol Anytek
Terminal block header with 13 positions, 3.5mm pitch, vertical orientation, through-hole mounting. Rated 10A and 300V.
✓ Total Stock: 2,160 pcs
$ Price Range: $0.59

OQ1312500000G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,160 pcs
On Request
2160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

OQ1312500000G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

OQ1312500000G Description

Short technical summary and product information.

The OQ1312500000G is a 13-position shrouded header from Amphenol Anytek, part of the OQ series. It features a 3.50mm pitch and vertical orientation, designed for through-hole mounting with solder termination. The header is rated for 10A current and 300V voltage, with an operating temperature range of -40°C to 115°C. Contact mating finish is tin, and the housing is green. This component is suitable for wire-to-board connections in industrial control systems, PLCs, and automation equipment.

OQ1312500000G Quick Information

Product Type: Terminal Block Header
Canonical Name: Header, Male Pins, Shrouded (4 Side), 13 Position, 3.5mm Pitch, Through Hole, Vertical
Subcategory: Shrouded Header

OQ1312500000G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

OQ1312500000G Estimated Pricing

Qty Low High
2,160+ $0.59 $0.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

OQ1312500000G Features

  • 13 positions with 3.50mm pitch spacing.
  • Vertical through-hole mounting design.
  • Rated for 10A current and 300V voltage.
  • Shrouded header for secure mating.
  • Operating temperature range -40°C to 115°C.

OQ1312500000G Applications

  • Used in industrial control panels.
  • Suitable for PLC and I/O modules.
  • Ideal for wire-to-board connections in automation equipment.

OQ1312500000G FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the OQ1312500000G have?

13 positions.

What is the pitch of this header?

3.50mm (0.138 inches).

What is the current rating?

10 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole with solder termination.

What is the header orientation?

Vertical.

What is the operating temperature range?

-40°C to 115°C.
