| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

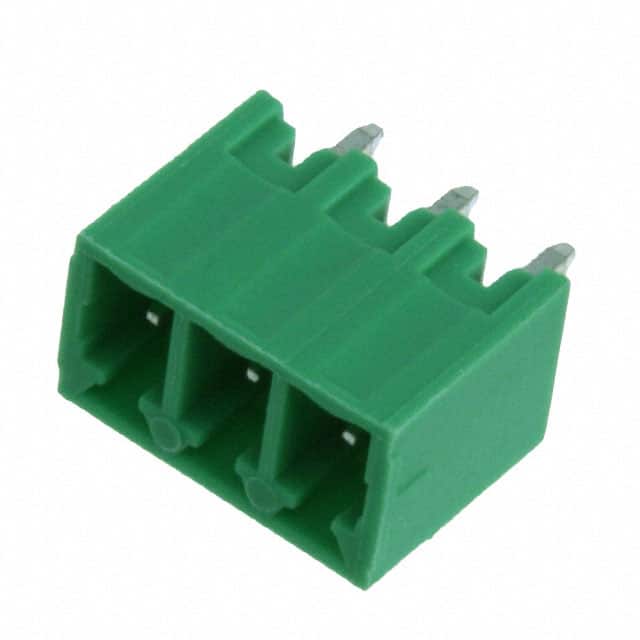

The Amphenol Anytek OQ0332500000G is a 3 position, single level, 3.81mm pitch vertical shrouded header designed for use in terminal block interconnect systems. This header features male pins with a 4-sided shroud for enhanced protection and alignment during mating.
Rated for 300V and 10A, the OQ0332500000G is suitable for power and signal distribution in industrial control, building automation, and instrumentation equipment. The through hole mounting and solder termination provide a reliable mechanical and electrical connection to the PCB.
The header is constructed with a green housing and tin-plated contact mating finish, offering good solderability and corrosion resistance. It operates over a temperature range of -40°C to 115°C, making it appropriate for a variety of environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.27 | $0.27 |
| 25+ | $0.25 | $0.25 |
| 50+ | $0.24 | $0.24 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.20 | $0.20 |
| 500+ | $0.18 | $0.18 |
| 750+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OQ0332500000G has 3 positions.
The pitch is 3.81mm (0.150 inches).
The voltage rating is 300V and the current rating is 10A.
It uses through hole mounting with solder termination.
The operating temperature range is -40°C to 115°C.
