| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage |

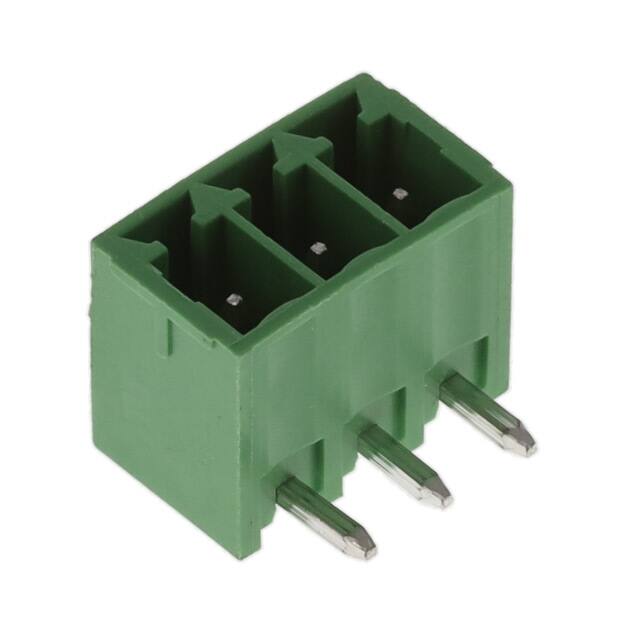

The OQ0312510000G is a 3-position terminal block header from Amphenol Anytek, featuring a shrouded (4 side) design with male pins. It has a pitch of 3.50mm and a right angle orientation, making it suitable for compact PCB layouts where space is limited. The header is through hole mounted with solder termination, ensuring a robust mechanical and electrical connection.
Electrical ratings include a voltage rating of 300V and a current rating of 10A, with an operating temperature range of -40°C to 115°C. The contact mating finish is tin, and the housing is green in color. This component is designed for use in terminal block systems for wire-to-board connections.
The header is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. It is classified under MSL level 1 (unlimited). The part is commonly used in industrial control, automation, and power distribution applications where reliable and secure connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.29 | $0.29 |
| 50+ | $0.26 | $0.26 |
| 100+ | $0.23 | $0.23 |
| 250+ | $0.20 | $0.20 |
| 500+ | $0.19 | $0.19 |
| 1,000+ | $0.15 | $0.15 |
| 5,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions with 1 level and 3 positions per level.
The pitch is 3.50mm (0.138 inches).
Voltage rating is 300V and current rating is 10A.
Through hole mounting with right angle (90°) orientation.
Operating temperature range is -40°C to 115°C.
Contact mating finish is tin.
The housing is green.
