| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,168 pcs
|
8168 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
7,525 pcs
|
7525 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,321 pcs
|
1321 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dynamic Range | |
| I/O Voltage Tolerance | |
| IR Rejection | |
| Measurements | |
| Mounting Type | |
| Operating Current | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Package / Case | |
| Package Dimensions | |
| Power Supply Range | |
| Proximity Detection | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Wavelength |

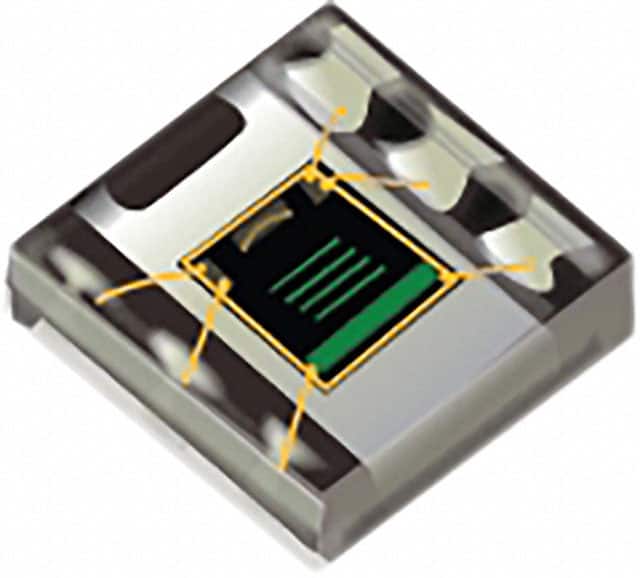

The Texas Instruments OPT3004DNPR is a digital ambient light sensor (ALS) designed to accurately measure visible light intensity, closely matching the photopic response of the human eye. It features significant infrared rejection over a wide angle of incidence, ensuring high accuracy regardless of the light source and allowing for aesthetic integration under dark glass.
This single-chip lux meter offers a wide measurement range from 0.01 lux to 83 k lux, with a 23-bit effective dynamic range and automatic gain ranging. It operates with a low current of 1.8 μA (typical) and supports a wide power supply range of 1.6 V to 3.6 V, with 5.5-V tolerant I/O. The sensor is available in a compact 6-USON (2x2 mm) package and a 6-UDFN Exposed Pad package, making it suitable for space-constrained applications.
Key features include precision optical filtering, automatic full-scale setting for simplified software configuration, and a flexible interrupt system. The operating temperature range is -40°C to +85°C. Its robust IR rejection and spectral accuracy make it ideal for applications requiring precise light level detection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The OPT3004DNPR provides I²C/SMBus output.
The operating voltage range is 1.6V to 3.6V.
The OPT3004DNPR can measure light intensity from 0.01 lux to 83 k lux.
The typical operating current is 1.8 μA.
The OPT3004DNPR rejects over 99% of IR light at a ±85° angle of incidence.
