| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,520 pcs
|
4520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Bandwidth | |
| Carrier Options | |
| Industrial Grade | |
| Internal Feedback Resistor | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Type | |
| Photodiode Size | |
| Proximity Detection | |
| Quiescent Current | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Wavelength | |
| responsivity |

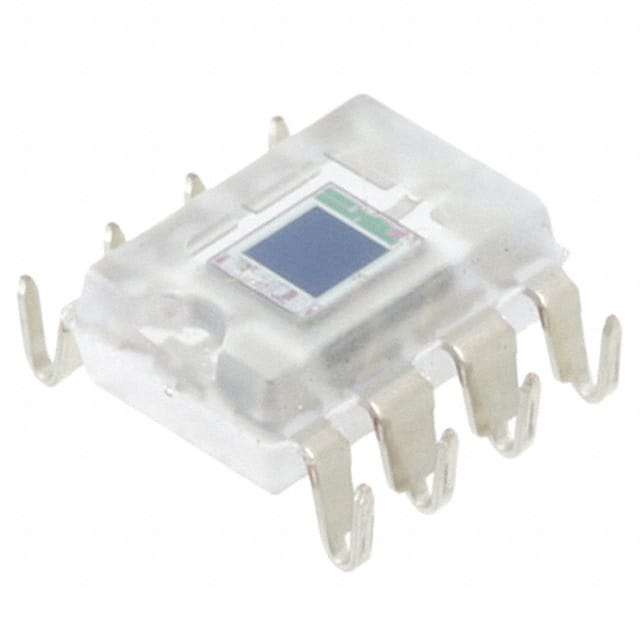

The OPT101P-J from Texas Instruments is a monolithic photodiode integrated with a single-supply transimpedance amplifier. This integration eliminates common issues found in discrete designs, such as leakage current errors and noise pickup.
The device features a 2.29 mm x 2.29 mm photodiode that operates in photoconductive mode for linearity and low dark current. It supports a wide supply voltage range of 2.7V to 36V with a low quiescent current of 120 µA. The sensor is sensitive to ambient light and has a peak wavelength sensitivity at 650nm.
Key electrical characteristics include an internal 1 MΩ feedback resistor, a responsivity of 0.45 A/W at 650 nm, and a bandwidth of 14 kHz. The output is a voltage signal that increases linearly with light intensity.
Packaged in an 8-pin SOP (Small Outline Package) with a gull wing lead style, the OPT101P-J is designed for surface mounting. It operates within a temperature range of 0°C to 70°C and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.09 | $7.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The OPT101P-J is available in an 8-SOP package.
The supply voltage range is 2.7V to 36V.
The OPT101P-J is RoHS3 Compliant.
