| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 20+21+ | On Request | On Request | |
|
2,390 pcs
|
2390 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Feedback Resistor | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Operating Voltage (Unspecified condition) | |
| Output Type | |
| Photodiode Size | |
| Proximity Detection | |
| Quiescent Current | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Wavelength | |
| responsivity |

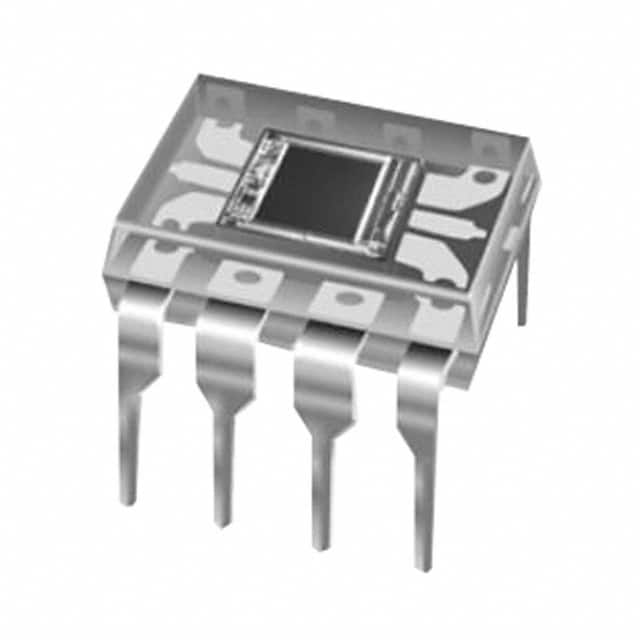

The OPT101P from Texas Instruments is a monolithic photodiode integrated with a single-supply transimpedance amplifier. This integration eliminates common discrete design issues like leakage current errors and noise pick-up. The device features a 2.29 mm x 2.29 mm photodiode that operates in photoconductive mode for excellent linearity and low dark current.
Key electrical specifications include a wide operating voltage range of 2.7V to 36V, a low quiescent current of 120 µA, and an internal 1 MΩ feedback resistor. It offers high responsivity of 0.45 A/W at 650 nm and a bandwidth of 14 kHz at RF = 1 MΩ. The output voltage increases linearly with light intensity.
Available in an 8-pin PDIP package, the OPT101P is designed for through-hole mounting. It operates within a temperature range of 0°C to 70°C. This component is suitable for applications requiring accurate light intensity measurement.
The OPT101P is designed for single or dual power-supply operation. The photodiode operates in the photoconductive mode for excellent linearity and low dark current. The device is available in a clear plastic 8-pin PDIP package.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.94 | $4.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OPT101P operates from a single supply voltage range of 2.7V to 36V.
The OPT101P is available in an 8-pin PDIP package.
The operating temperature range for the OPT101P is 0°C to 70°C.
The OPT101P is RoHS3 Compliant.
