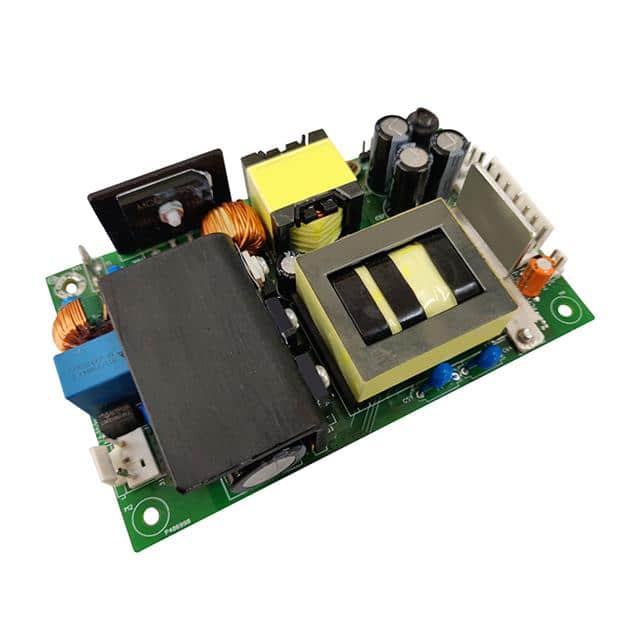

This AC/DC converter from Selec Controls USA Inc., part number OPS3X5-350-24-A-1-CU, is designed for ITE (Commercial) and Medical applications. It features an open frame type and chassis mount for easy integration.
The converter provides a 24V output with a current rating of 14.58A, delivering up to 200W of power, or 350W with forced air. It operates efficiently at 93% and has a wide operating temperature range from -40°C to 70°C with derating. Key features include adjustable output, DC input capability, PFC, standby output, and universal input.
With dimensions of 127.0mm x 50.8mm x 29.4mm, this converter meets standards such as 60601-1 and 62368-1. It offers 4kV of isolation voltage and is RoHS3 compliant.
The output is 24V at 14.58A.
It is rated for 200W continuous and 350W with forced air cooling.
The operating temperature range is -40°C to 70°C with derating.
It is designed for chassis mount installation.
It is cULus approved and complies with standards 60601-1 (medical) and 62368-1 (ITE).
