| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

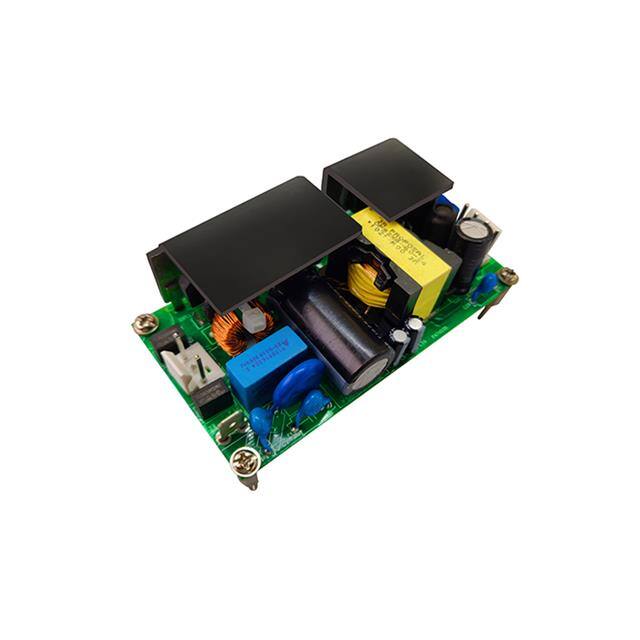

The Selec Controls USA Inc. OPS2X4-60-24-A-1-CU is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers a 24V output and a maximum power of 60W, with a current rating of 2.5A.
Key electrical specifications include an efficiency of 87% and features such as adjustable output, DC input capability, and universal input. The converter is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 29.5mm.
This model meets safety standards including cULus certification and complies with 60601-1 and 62368-1. It operates within a temperature range of -40°C to 70°C with derating. The isolation voltage is rated at 4kV.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The REACH status is unaffected.
The output voltage is 24V and the output current is 2.5A.
The operating temperature range is -40°C to 70°C with derating.
The efficiency is 87%.
The isolation voltage is 4 kV.
It uses chassis mount.
The dimensions are 101.6mm (length) x 50.8mm (width) x 29.5mm (height).
It is designed for ITE (Commercial) and Medical applications.
