| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

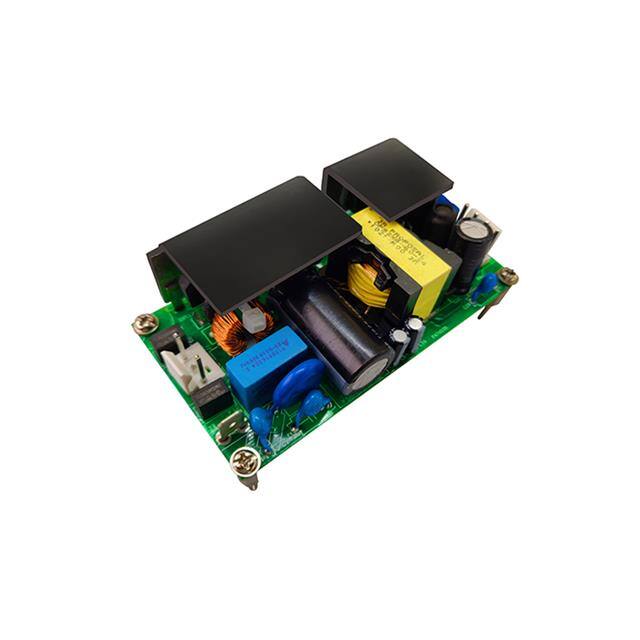

The Selec Controls USA Inc. OPS2X4-60-15-A-1-CU is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. This unit delivers 60W of power with a 15V output voltage and a maximum current of 4A.
Featuring a chassis mount design, it offers adjustable output, DC input capability, and universal input. The converter operates efficiently at 85% and has an isolation voltage rating of 4 kV. Its dimensions are 101.6mm in length, 50.8mm in width, and 29.5mm in height.
The operating temperature range is from -40°C to 70°C with derating. It complies with standard numbers 60601-1 and 62368-1, and is RoHS3 compliant. The Moisture Sensitivity Level (MSL) is 1, indicating unlimited usability under standard conditions.
The output power is 60W.
The output voltage is 15V and the output current is 4A.
This AC/DC converter uses chassis mount.
The operating temperature range is -40°C to 70°C (With Derating).
It complies with standard numbers 60601-1 and 62368-1.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
