| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

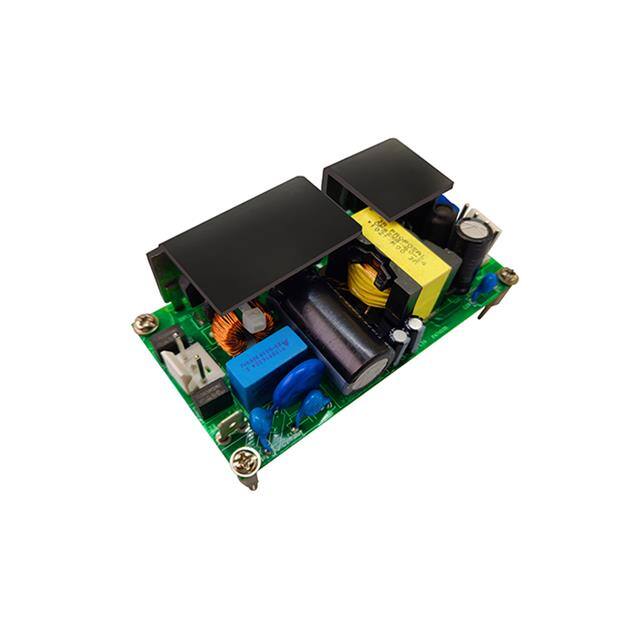

This AC/DC converter from Selec Controls USA Inc., part number OPS2X4-60-12-A-1-CU, provides a power output of 60W with a 5A current rating. It is designed as an open frame unit for convenient chassis mounting.
Key electrical specifications include a universal input capability and an adjustable output feature. The converter operates within a temperature range of -40°C to 70°C with derating. It meets safety standards such as 60601-1 and 62368-1, and is approved by cULus.
With dimensions of 101.6mm x 50.8mm x 29.5mm, this converter is suitable for ITE (Commercial) and Medical applications. It offers an isolation voltage of 4 kV and an efficiency of 85%.
12V.
60W.
85%.
-40°C to 70°C with derating.
Chassis mount.
Open frame.
cULus approved; compliant with EN 60601-1 and EN 62368-1.
