| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

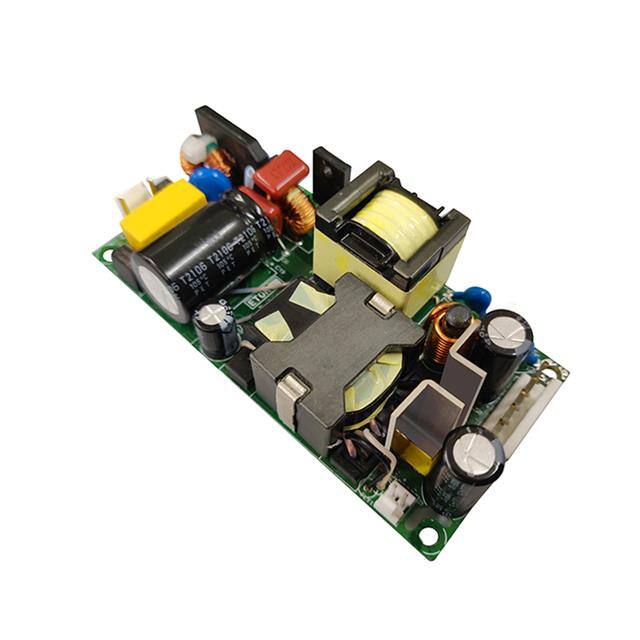

This OPS2X4-200-48-A-1-CU from Selec Controls USA Inc. is an open frame AC/DC power supply converter designed for ITE (Commercial) and Medical applications. It provides a 130W output, with a higher 200W capability under forced air conditions, and delivers 4.17A at 48V.
The converter features a chassis mount design and offers a wide operating temperature range from -40°C to 70°C with derating. Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and a standby output. Its efficiency is rated at 93% and it provides 4 kV of isolation voltage.
With dimensions of 101.6mm x 50.8mm x 29.5mm, this unit is suitable for integration into various systems where space is a consideration. It meets safety standards including 60601-1 and 62368-1.
The output voltage is 48V and the output current is 4.17A.
It is rated at 130W continuous power, and 200W with forced air cooling.
The operating temperature range is -40°C to 70°C with derating.
It complies with medical standard 60601-1 and ITE standard 62368-1.
The efficiency is 93%.
The isolation voltage is 4 kV.
The dimensions are 101.6mm (length) x 50.8mm (width) x 29.5mm (height).
