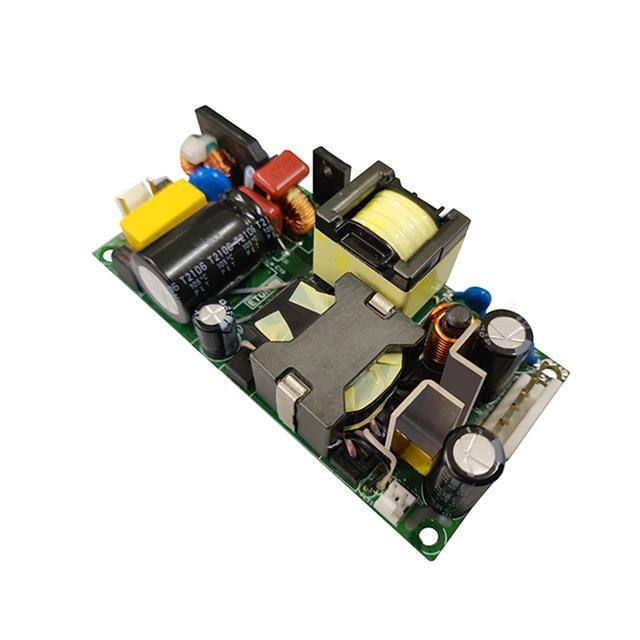

This OPS2X4-200-12-A-1-CU from Selec Controls USA Inc. is an open frame AC/DC power supply designed for chassis mounting. It delivers 130W of power, with a peak capability of 200W under forced air conditions, and provides a current of 16.67A.
The converter operates with 91% efficiency and supports universal input voltage. Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and a standby output. It is designed for applications in ITE (Commercial) and Medical sectors.
The unit measures 101.6mm x 50.8mm x 29.5mm (4.00" x 2.00" x 1.16"). It has an isolation voltage of 4 kV and operates within a temperature range of -40°C to 70°C, with derating applied at higher temperatures. The converter complies with standard numbers 60601-1 and 62368-1.
The output power is 130W, with a forced air capability of 200W.
The operating temperature range is -40°C to 70°C, with derating.
The dimensions are 101.6mm x 50.8mm x 29.5mm.
It complies with standard numbers 60601-1 and 62368-1.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
