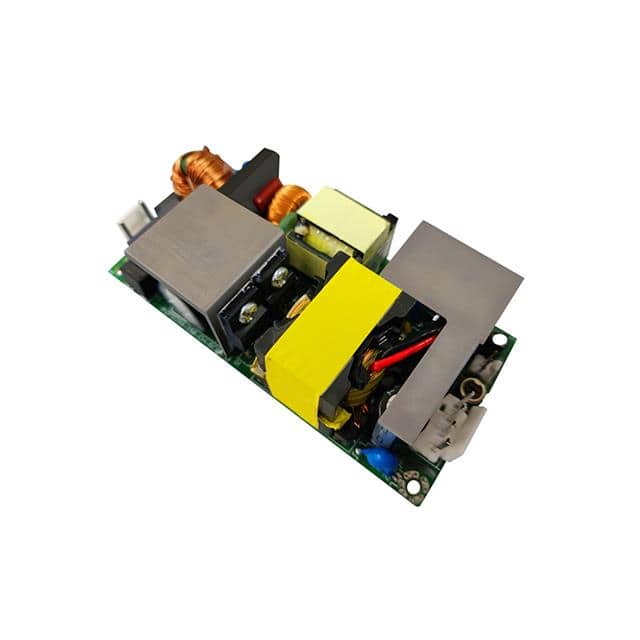

The Selec Controls USA Inc. OPS2X4-150-48-A-1-CU is an open frame AC/DC converter designed for industrial, instrumentation, and communication equipment applications. It features a power rating of 150W with forced air and a 48V DC output voltage, capable of delivering up to 3.2A.
This converter boasts high efficiency at 89% and operates within a wide temperature range of -40°C to +70°C with derating. It supports universal input voltage and includes features such as adjustable output, DC input capability, PFC, and standby output. The unit is designed for chassis mounting and meets safety standards like 60601-1 and 62368-1.
With dimensions of 101.6mm x 50.8mm x 29.5mm, it offers a compact solution for space-constrained designs. The metallic housing provides durability, and the conductor material is copper. The isolation voltage is rated at 4kV, ensuring reliable performance in demanding environments.
The rated output voltage is 48V DC.
The power rating is 150W with forced air.
It operates from -40°C to +70°C with derating.
The dimensions are 101.6mm x 50.8mm x 29.5mm.
It complies with 60601-1 and 62368-1 standards.
