| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

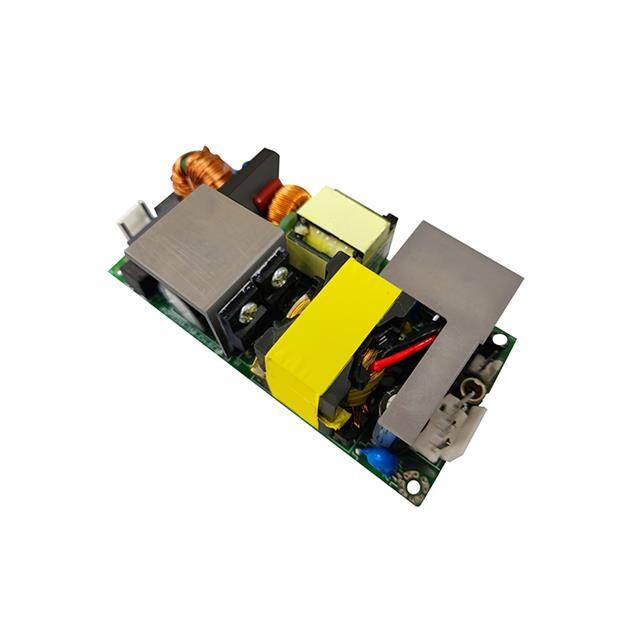

The Selec Controls USA Inc. OPS2X4-150-15-A-1-CU is an open frame AC/DC converter designed for industrial and medical applications. It delivers a stable 15VDC output with a rated current of 10A, providing 100W of continuous power and up to 150W with forced air.
Key electrical specifications include a wide input voltage range, 87% efficiency, and protections against over voltage, over current, and short circuits. The unit also features adjustable output, PFC, standby output, and universal input capabilities. It is designed for chassis mounting and operates within a temperature range of -20°C to +70°C.
With dimensions of 101.6mm x 50.8mm x 29.5mm, this converter is suitable for integration into various systems. It meets safety standards such as 60601-1 and 62368-1, indicated by cULus approval.
The OPS2X4-150-15-A-1-CU provides a rated voltage of 15 VDC and a rated current of 10 A.
The power rating is 100W, with a peak power of 150W under forced air conditions.
The operating temperature range is from -20°C to +70°C.
This unit is designed for chassis mount.
Key features include adjustable output, DC input capability, PFC, standby output, universal input, and protections for over voltage, over current, and short circuit.
