| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

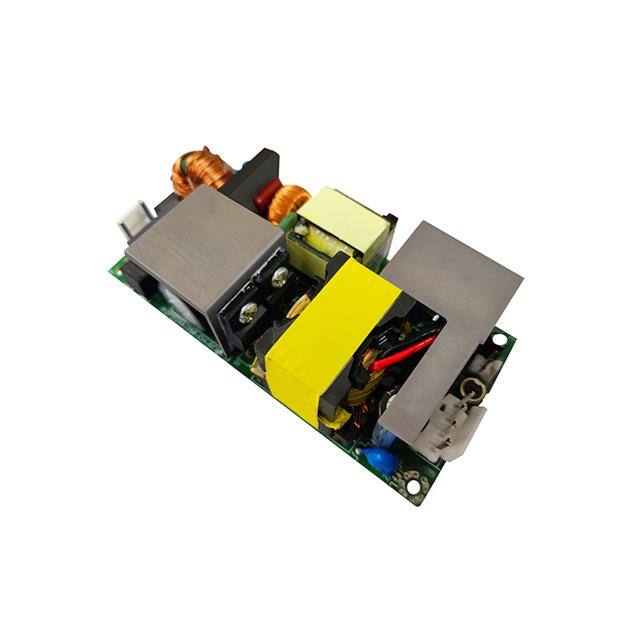

The Selec Controls USA Inc. OPS2X4-150-12-A-1-CU is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a continuous output power of 100W, with a forced air capability up to 150W, and delivers 12.5A of current.
This converter features universal input, adjustable output, DC input capability, Power Factor Correction (PFC), and a standby output. It operates efficiently at 87% and has a wide operating temperature range of -40°C to 70°C with derating. The unit is chassis mountable and meets safety standards including cULus certification.
Key specifications include a length of 101.6mm, width of 50.8mm, and height of 29.5mm. It is designed with a high isolation voltage of 4kV and complies with standards such as 60601-1 and 62368-1.
-40°C to 70°C with derating.
Chassis mount open frame design.
100W (150W with forced air).
87%.
12.5A.
Yes, it features adjustable output.
cULus, compliant with 60601-1 and 62368-1.
101.6mm x 50.8mm x 29.5mm (4.00" x 2.00" x 1.16").
