| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

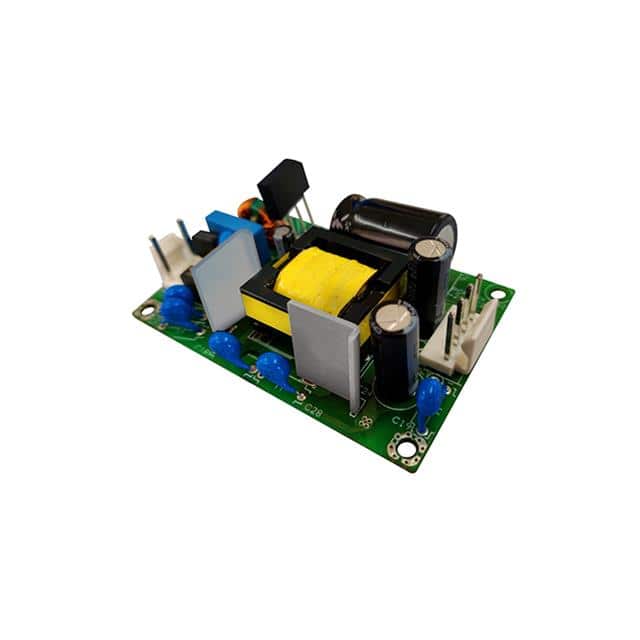

The Selec Controls USA Inc. OPS2X3-40-24-A-1-CU is an open frame AC/DC converter designed for reliable power conversion. It delivers 40W of power with a 1.67A output current and features a universal input with PFC.
This converter is suitable for ITE (Commercial) and Medical applications, boasting an efficiency of 85% and an isolation voltage of 4 kV. It operates within a temperature range of -40°C to 70°C with derating and meets standards such as 60601-1 and 62368-1.
The unit is designed for chassis mounting and has dimensions of 76.2mm x 50.8mm x 29.5mm. It includes features like adjustable output, DC input capability, and conforms to RoHS3 standards.
The output voltage is 24V and the power rating is 40W.
The operating temperature range is -40°C to 70°C with derating.
The efficiency is 85%.
It uses chassis mount.
It complies with 60601-1 and 62368-1 standards and is cULus approved.
The isolation voltage is 4 kV.
