| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

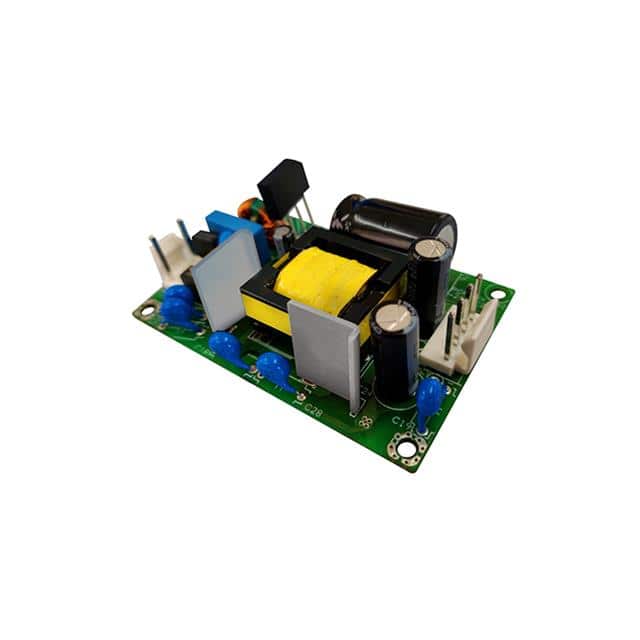

This Selec Controls USA Inc. OPS2X3-40-15-A-1-CU is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers 40W of power with a 15V output and a current rating of 2.67A.
The converter operates with an efficiency of 83% and features adjustable output, DC input capability, Power Factor Correction (PFC), and universal input. Its dimensions are 76.2mm x 50.8mm x 29.5mm, and it is designed for chassis mounting.
Key specifications include a voltage rating of 4 kV and an operating temperature range of -40°C to 70°C with derating. It complies with standards such as 60601-1 and 62368-1, and is RoHS3 compliant.
This unit is suitable for applications requiring a reliable and efficient power conversion solution in a compact form factor.
15V.
40W.
83%.
1.
76.2mm x 50.8mm x 29.5mm (3.00" x 2.00" x 1.16").
-40°C to 70°C with derating.
cULus, compliant with 60601-1 (medical) and 62368-1 (ITE).
