| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

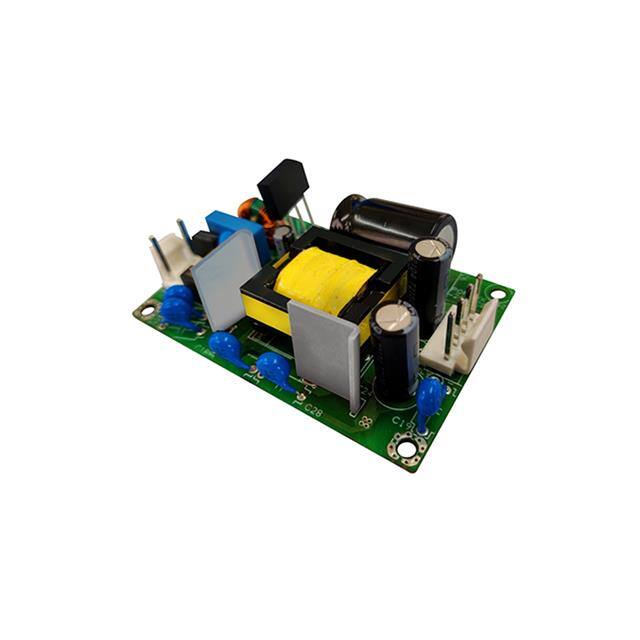

The Selec Controls USA Inc. OPS2X3-40-05-A-1-CU is a 25W open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a single output with a current rating of 5A and features adjustable output, DC input capability, and Power Factor Correction (PFC).
This converter operates with a universal input voltage and has an efficiency of 78%. The isolation voltage is rated at 4 kV. Its dimensions are 76.2mm x 50.8mm x 29.5mm, and it is designed for chassis mounting.
The operating temperature range is from -40°C to 70°C with derating. It complies with standard numbers 60601-1 and 62368-1, and is cULus approved. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1, and REACH status is Unaffected.
The output current is 5 A.
The power rating is 25W.
The operating temperature range is -40°C to 70°C (With Derating).
It complies with standard numbers 60601-1 and 62368-1.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
