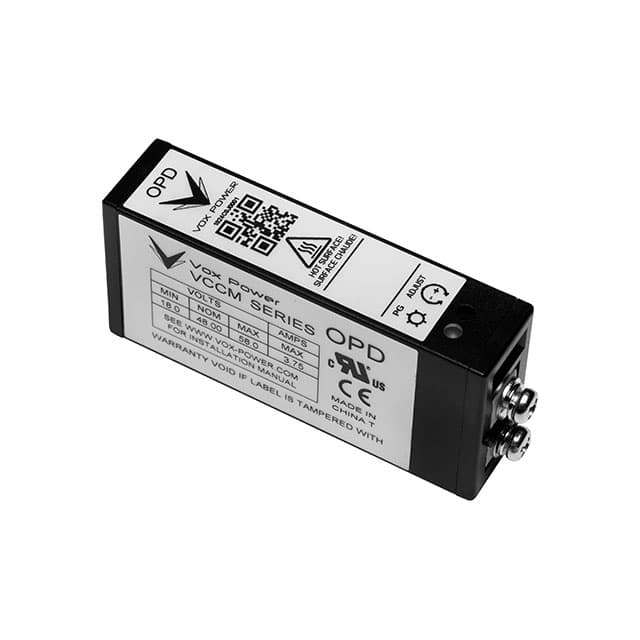

The Vox Power Ltd. OPD is a DC Output Module designed for use within the VCCM600M series of configurable power supplies. This module provides a single output with a voltage range of 18V to 58V and a maximum current of 3.75A, delivering up to 150W of power. It is approved to key safety and EMC standards including IEC/UL60601-1 3.2 Edition and IEC/UL60601-1-2 4th Edition.
Designed for high reliability, the OPD module is part of a fan-less, modular power supply architecture. It can be configured as a conduction, convection, or forced air-cooled solution, offering flexibility for integration into various applications. The module utilizes 100% SMT components for enhanced reliability and supports features like dynamic voltage and current control, as well as series and paralleling of outputs when used within the VCCM600M system.
With an AC input voltage range of 85-264V RMS, the VCCM600M system, including the OPD module, is suitable for a wide array of industrial and medical applications where reliability and low audible noise are critical. The compact size of the VCCM600M system (4" x 7" x 1.61") further aids in seamless integration.
The output voltage range for the OPD module is 18V to 58V.
The OPD module has a maximum output power of 150W.
The maximum output current for the OPD module is 3.75A.
The OPD module is approved to IEC/UL60601-1 3.2 Edition and IEC/UL60601-1-2 4th Edition standards.
The AC input voltage range is 85-264V RMS.
The baseplate operating temperature range is -40°C to 85°C, and the ambient operating temperature is -40°C to 70°C.
