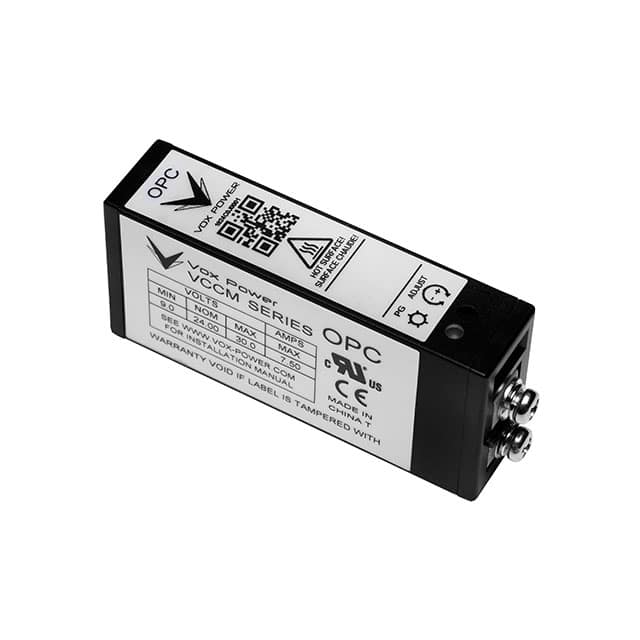

The Vox Power Ltd. OPC is a DC Output Module, part of the VCCM600 series, designed for configurable AC/DC power supply systems. This module provides a flexible output voltage range from 9V to 30V, capable of delivering up to 7.5A of current and a total output power of 150W. It supports a peak power rating of 225W for up to 5 seconds.
Key electrical specifications include a line regulation of ±0.1%VNOM and load regulation of ±150mV. The module features over-current protection at 105-125% of rated current and over-voltage protection at 36V. It also includes over-temperature protection, typically between 115-125°C.
Designed for demanding applications, the OPC module operates with a baseplate temperature range of -40°C to 85°C and an ambient operating temperature range of -40°C to 70°C. Its compact dimensions of 77 x 18.8 x 36 mm and weight of 100g facilitate integration into various system designs. The module is approved to medical safety standards including IEC/UL60601-1 and IEC/UL60601-1-2 (EMC).
This output module is suitable for integration into configurable power solutions where precise voltage and current control are required. Its fan-less architecture and conduction cooling capabilities make it ideal for applications where reliability and low audible noise are critical.
The output voltage range for the OPC module is manually adjustable from 9V to 30V.
The OPC module has a maximum continuous output current rating of 7.5A.
The nominal output power for the OPC module is 150W.
The OPC module can deliver a peak power rating of 225W for a maximum of 5 seconds.
The baseplate operating temperature range is -40°C to 85°C, and the ambient operating temperature range is -40°C to 70°C.
The OPC module is approved to IEC/UL60601-1 3.2 Edition and IEC/UL60601-1-2 4th Edition (EMC).
