| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 824 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Height | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Power Dissipation | |
| Reverse Voltage | |
| Sensing Distance | |
| Sensing Method | |
| Wavelength | |
| Width |

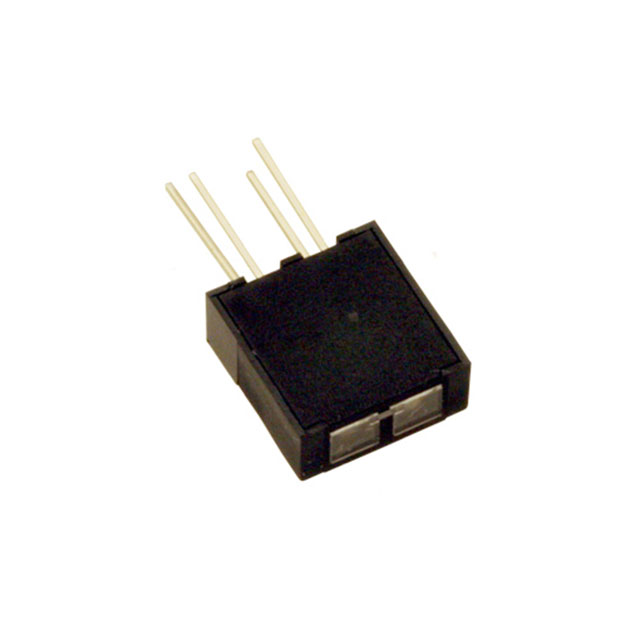

The OPB732 is a reflective phototransistor sensor manufactured by TT Electronics / Optek. This component is designed for sensing applications with a maximum collector current of 50 mA and a collector-emitter breakdown voltage of 30 V.
Key electrical specifications include a forward voltage of 1.8 V and a forward current of 50 mA, with an operating wavelength of 850 nm. The sensing distance is rated at 76.2mm (3 inches).
Mechanically, the OPB732 has dimensions of 12.19 mm in length, 5.08 mm in width, and 12.7 mm in height. It is designed for through-hole mounting and comes in a PCB mount package.
The operating temperature range for this sensor is from -40°C to 85°C. It is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensing distance for the OPB732 is 76.2mm.
The maximum collector current for the OPB732 is 50 mA.
The OPB732 operates in a temperature range of -40°C to 85°C.
The OPB732 is a PCB Mount package designed for Through Hole mounting.
