| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | 642 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Power Dissipation | |
| Response Time | |
| Reverse Voltage | |
| Sensing Distance | |
| Sensing Method | |
| Supply Current | |
| Voltage | |
| Wavelength | |
| Width |

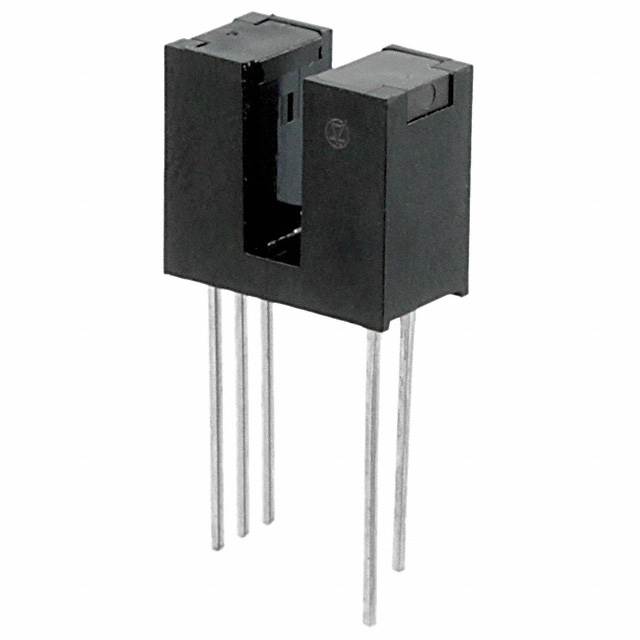

The OPB471N11 from TT Electronics / Optek is a through-beam optical sensor designed for PCB mounting. It features an NPN open collector and buffer output type, with a response time of 50ns and a fall time of 50ns.
This sensor has a sensing distance of 0.125 inches (3.18mm) and a slot width of 3.18mm. The operating supply voltage ranges from 4.5V to 16V, with a forward voltage of 1.7V and a reverse voltage of 2V. The forward current is 40mA, and the supply current is 7.5mA. The power dissipation is rated at 275mW.
With an operating temperature range of -40°C to 85°C, the OPB471N11 is suitable for various environmental conditions. Its dimensions include a height of 11.05mm, width of 6.6mm, and length of 12.57mm. The aperture width is 0.25mm. The sensor emits light at a wavelength of 890nm.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is classified under the Photologic® series and is designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensing distance of the OPB471N11 is 3.18mm.
The OPB471N11 operates with a supply voltage range of 4.5V to 16V.
The OPB471N11 features an NPN open collector and buffer output type.
The operating temperature range for the OPB471N11 is -40°C to 85°C.
Yes, the OPB471N11 is RoHS3 Compliant.
