The OPA241PA is a single-supply, microPower operational amplifier designed by Burr-Brown (Texas Instruments) for battery-powered and portable applications. It offers very low power consumption with a quiescent current of just 25µA.
Key electrical characteristics include a wide supply voltage range, supporting single supply operation from +2.7V to +36V and dual supply from ±1.35V to ±18V. The amplifier features a low offset voltage of ±250mV maximum, high common-mode rejection of 124dB, and high open-loop gain of 128dB. Its output swing is rail-to-rail, within 50mV of the supply rails, and the input common-mode voltage range extends 200mV below the negative supply, making it ideal for single-supply configurations.

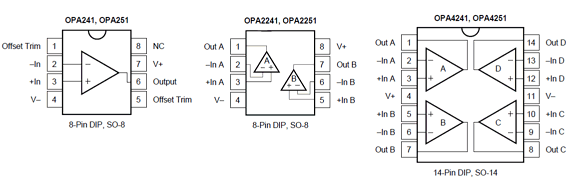

This operational amplifier is housed in an 8-pin PDIP package, suitable for through-hole mounting. Its design prioritizes low power consumption without compromising performance, making it a suitable choice for various portable electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OPA241PA operates with a single supply voltage from +2.7V to +36V or a dual supply from ±1.35V to ±18V.
The quiescent current (IQ) for the OPA241PA is 25mA.
The maximum offset voltage for the OPA241PA is ±250mV.
The OPA241PA is available in a DIP 8 package.
