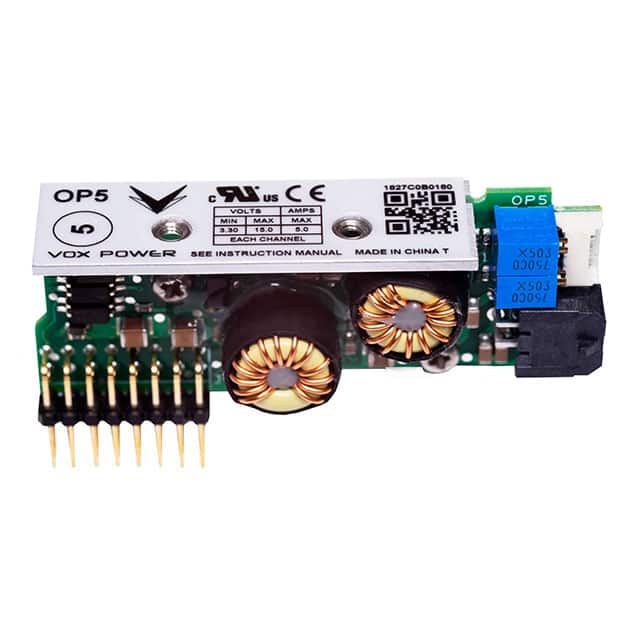

The Vox Power Ltd. OP5 is a versatile dual output DC module designed for configurable power supply systems. It provides a wide output voltage range from 3.3V to 15V on each of its two channels, with a rated current of 5A and a rated power of 75W per channel. This module is built to meet stringent industry requirements, carrying approvals from IEC and EN standards, including 60601-1, 60601-1-2, 60950-1, and 62368-1.
The OP5 module features precise voltage regulation, with load and line regulation measured at ±50mV and ±0.1%Vnom respectively. Initial voltage accuracy is factory set within ±0.5%, and manual adjustment is available via an 11-turn potentiometer. The module operates within an ambient temperature range of -20°C to 70°C, with derating above 50°C. Its compact design and high power density make it suitable for demanding applications where space and performance are critical.
This output module is part of the NEVO+ series, known for its modularity and configurability. It integrates seamlessly into larger power supply solutions, offering flexibility for various system designs. The module's specifications ensure reliable performance in medical and industrial environments.
The OP5 module offers a dual output voltage range of 3.3V to 15V for each channel.
Each channel of the OP5 module is rated for 5A of current and 75W of power.
The OP5 module is approved to IEC, EN standards including 60601-1, 60601-1-2, 60950-1, and 62368-1.
The OP5 module can operate in an ambient temperature range from -20°C to 70°C, with derating required above 50°C.
