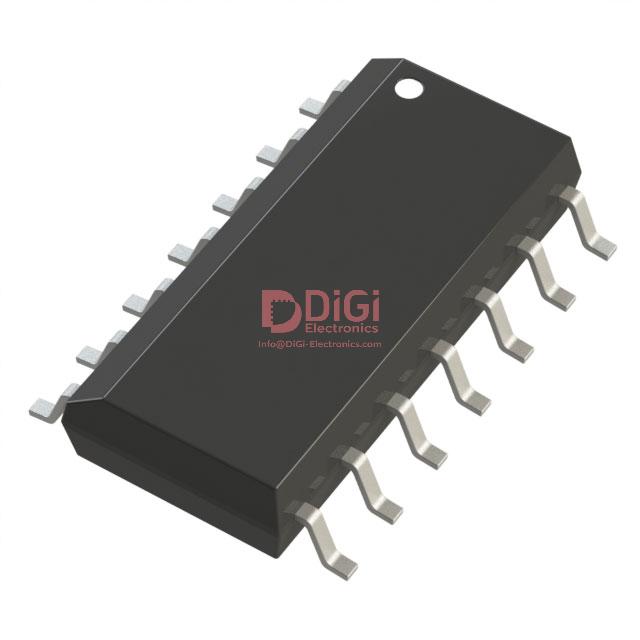

OP484FSZ The Analog Devices OP484FSZ is a quad operational amplifier featuring rail-to-rail output and a 4.25 MHz gain bandwidth product. It is supplied in a 14-SOIC package.
Mfr Part #:

OP484FSZ

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
The Analog Devices OP484FSZ is a quad operational amplifier featuring rail-to-rail output and a 4.25 MHz gain bandwidth product. It is supplied in a 14-SOIC package.
✓ Total Stock: 108 pcs

OP484FSZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

OP484FSZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Number of Circuits
Operating Temperature
Output Type
Package / Case
SVHC Present
Slew Rate
Tape & Reel
View Similar Products (0)

OP484FSZ Description

Short technical summary and product information.

The Analog Devices OP484FSZ is a versatile quad operational amplifier designed for general-purpose applications. It offers rail-to-rail output performance, enabling it to operate efficiently across a wide supply voltage range from 3V to 36V.



Key electrical specifications include a slew rate of 4V/µs and a gain bandwidth product of 4.25 MHz, making it suitable for various signal conditioning tasks. The amplifier features a low input bias current of 80 nA and an input offset voltage of 250 µV. Each channel can deliver an output current of 10 mA.



This operational amplifier is housed in a standard 14-SOIC package, suitable for through-hole or surface-mount assembly depending on the specific variant. The operating temperature range is -40°C to 125°C, ensuring reliable performance in diverse environmental conditions. The OP484FSZ is designed for applications requiring precise amplification and wide dynamic range.

OP484FSZ Quick Information

Product Type: Operational Amplifier
Canonical Name: Analog Devices OP484FSZ General Purpose Rail-to-Rail Amplifier
Subcategory: General Purpose Amplifier

OP484FSZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

OP484FSZ Features

  • Quad general purpose operational amplifier.
  • Rail-to-rail output capability.
  • 4.25 MHz gain bandwidth product.
  • Wide supply voltage range.
  • Operates from -40°C to 125°C.

OP484FSZ Applications

  • Ideal for multi-channel sensor signal conditioning circuits.
  • Used in active audio filtering and tone control circuits.
  • Suitable for industrial process control loop buffers.
  • Effective for voltage reference distribution networks.
  • Applied in portable battery-powered measurement devices.

OP484FSZ FAQs

5 frequently asked questions generated from this part’s specifications.
What is the gain bandwidth product of the OP484FSZ?

The gain bandwidth product of the OP484FSZ is 4.25 MHz.

What is the operating temperature range for the OP484FSZ?

The operating temperature range for the OP484FSZ is -40°C to 125°C.

What type of output does the OP484FSZ offer?

The OP484FSZ offers rail-to-rail output.

How many circuits are in the OP484FSZ?

The OP484FSZ contains 4 circuits.

What is the package type for the OP484FSZ?

The package type for the OP484FSZ is 14-SOIC.
