| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
297 pcs
|
297 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Output Current | |
| PSRR | |
| Package / Case | |
| SVHC Present | |
| Supply Current |
The OP290GPZ from Analog Devices is a high-performance micropower dual operational amplifier. It is designed to operate efficiently from a single supply voltage ranging from 1.6 V to 36 V, or from dual supplies spanning ±0.8 V to ±18 V. This op amp features true single-supply operation, with input and output voltage ranges that include ground, enabling zero-in, zero-out operation.
Key electrical characteristics include a low quiescent supply current of just 20 µA per amplifier, making it suitable for power-sensitive applications. It also boasts a high output drive capability of 5 mA minimum. The device offers a low input offset voltage of 200 µV typical and a high open-loop gain of 400 V/mV minimum. Its outstanding Power Supply Rejection Ratio (PSRR) is 5.6 µV/V maximum.

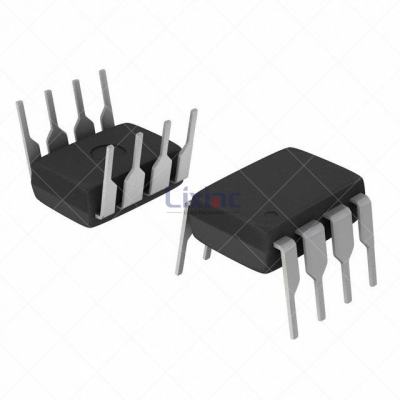

The OP290GPZ utilizes an industry-standard 8-lead dual pinout and is available in a PDIP package, suitable for through-hole mounting. Its precision and low power consumption make it a versatile choice for various analog circuit designs.
The OP290GPZ operates from a single supply of 1.6 V to 36 V or from dual supplies of ±0.8 V to ±18 V.
The quiescent supply current per amplifier for the OP290GPZ is a maximum of 20 µA.
The OP290GPZ has a minimum output drive current of 5 mA.
The typical input offset voltage for the OP290GPZ is 200 µV.
The OP290GPZ has a minimum open-loop gain of 400 V/mV.
The OP290GPZ has an outstanding PSRR of 5.6 µV/V maximum.
The OP290GPZ is available in a PDIP package.
