| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| PSRR | |
| Package / Case | |
| Supply Current |
The Analog Devices Inc. OP200AZ is a monolithic dual operational amplifier designed for precision applications. It offers an extremely low input offset voltage of less than 75 µV with a drift below 0.5 µV/°C, guaranteed over the full military temperature range.
Key electrical characteristics include a high open-loop gain exceeding 5,000,000, input bias current under 2 nA, CMRR over 120 dB, and PSRR below 1.8 µV/V. Each amplifier draws less than 725 µA of supply current, making it power-efficient. The voltage noise density is 11 nV/√Hz at 1 kHz.

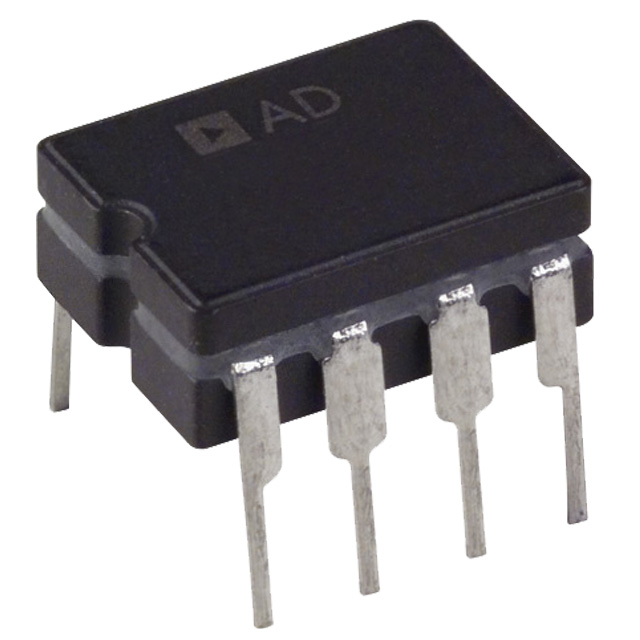

Packaged in an industry-standard 8-lead CERDIP, the OP200AZ combines precision performance with space and cost savings. It is suitable for applications requiring multiple precision op amps where low power consumption is critical.
The input offset voltage of the OP200AZ is a maximum of 75 µV.
The offset voltage drift for the OP200AZ over the -55°C to +125°C temperature range is a maximum of 0.5 µV/°C.
The typical supply current per amplifier for the OP200AZ is 725 µA maximum.
The open-loop gain of the OP200AZ exceeds 5,000,000 V/mV into a 10 kΩ load.
The input bias current for the OP200AZ is under 2 nA.
The noise voltage density of the OP200AZ at 1 kHz is 11 nV/√Hz.
The OP200AZ is available in an 8-CERDIP package.
