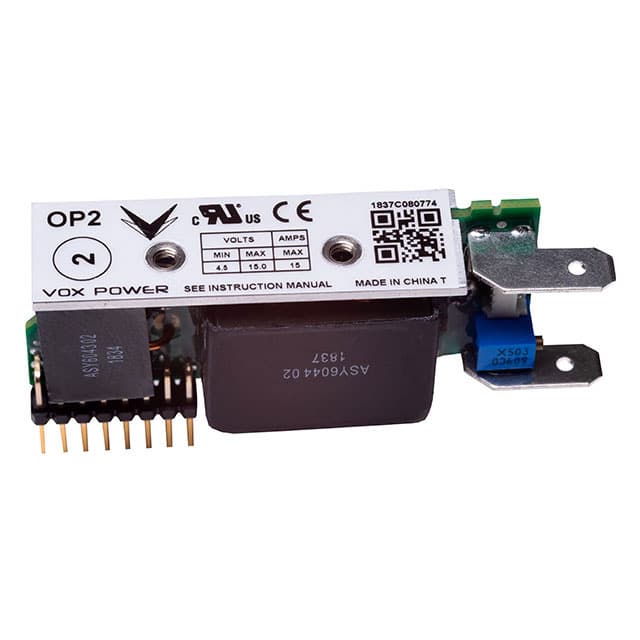

The Vox Power Ltd. OP2 is a DC Output Module designed for use within the NEVO+ series of configurable power supplies. It offers a versatile output voltage range from 4.5V to 15V, with a rated current of 15A and an average output power of 150W. Peak output power can reach 225W for short durations.
Key electrical specifications include a manual voltage adjustment via an 11-turn potentiometer, precise load and line regulation measured at the sense terminals, and cross-regulation. The module features over-current protection ranging from 105% to 125% of rated current and reverse current protection.
Designed for integration into demanding industrial applications, the OP2 module supports features like current sharing accuracy and isolation to ground. Its specifications are detailed in the datasheet, providing engineers with the necessary information for system design and implementation.
The output voltage range for the OP2 module is 4.5V to 15V.
The rated current for the OP2 module is 15A.
The average output power for the OP2 module is 150 Watts.
The peak output power for the OP2 module is 225 Watts, available for less than 5 seconds with a 50% duty cycle.
Voltage adjustment is performed manually using an 11-turn potentiometer.
Over-current protection is set between 105% and 125% of the rated current.
The ambient operating temperature range is -20°C to 70°C, with derating above 50°C.
