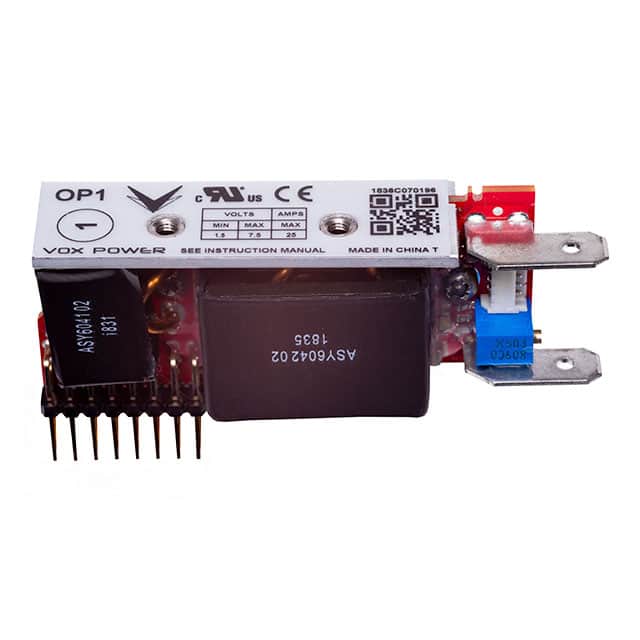

The Vox Power Ltd. OP1 is a DC output module designed for configurable power supply systems. It belongs to the NEVO+ series and provides a versatile output voltage range from 1.5V to 7.5V, with a rated current of 25A and an average output power of 125W.
Key electrical specifications include a peak output power of 187.5 Watts with a 50% duty cycle for short durations. The module features precise control with initial voltage accuracy of ±0.5% and manual voltage adjustment via an 11-turn potentiometer. Load regulation is within ±50mV, and line regulation is within ±0.1%Vnom, measured at the sense terminals. Transient response is rated at 1V for a 25% to 75% load change at 1A/µs, recovering within 100µs.
Protection features include over-current protection set between 105% and 125% of rated current, and reverse current protection from -6% to 0% of rated current. Short circuit protection is also integrated. The module is designed to meet safety standards such as IEC, EN, 60601-1, 60601-1-2, 60950-1, and 62368-1.
This DC output module is suitable for applications requiring flexible and reliable power delivery within a configurable power supply architecture.
The output voltage range is adjustable from 1.5V to 7.5V.
The rated current is 25A.
The average output power is 125W.
Load regulation is ±50mV and line regulation is ±0.1%Vnom.
Yes, over-current protection is set between 105% and 125% of rated current.
It complies with IEC, EN, 60601-1, 60601-1-2, 60950-1, and 62368-1 standards.
