| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
366 pcs
|
366 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| Shape | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

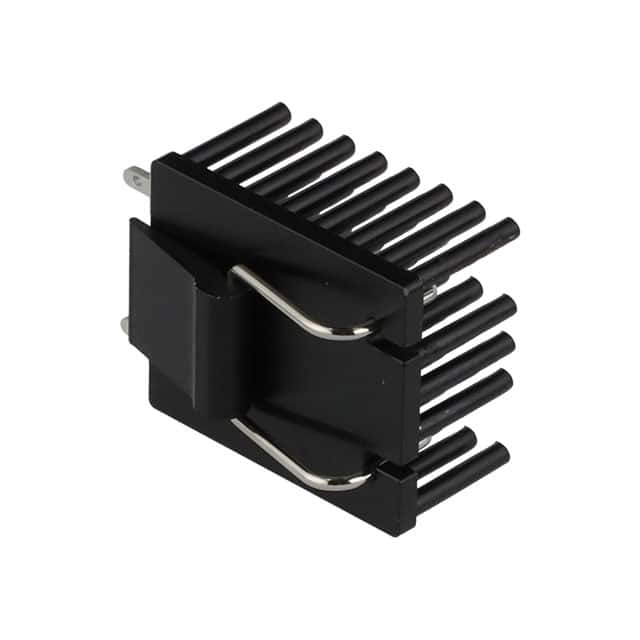

The Wakefield-Vette omniKlip Series heat sink, part number OMNI-UNI-PF-38, is engineered for efficient thermal management of TO-220, TO-247, and TO-264 devices. Constructed from aluminum alloy with a black anodized finish, this heat sink provides a thermal resistance of 8.07°C/W under natural convection conditions.
Designed for board-level vertical mounting, the OMNI-UNI-PF-38 features a rectangular fin shape. Its attachment method utilizes a clip and solder foot system, simplifying assembly. The heat sink has a width of 29.97mm (1.180") and a length of 38.10mm (1.500"), with a fin height of 0.690" (17.53mm).
This heat sink is part of the omniKlip series, known for its configurable and high-performance solutions. It is suitable for applications requiring effective heat dissipation in compact electronic packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OMNI-UNI-PF-38 heat sink is designed to cool TO-220, TO-247, and TO-264 packages.
The thermal resistance of the OMNI-UNI-PF-38 heat sink at natural convection is 8.07°C/W.
The OMNI-UNI-PF-38 heat sink is made from aluminum.
The OMNI-UNI-PF-38 heat sink has a black anodized finish.
The OMNI-UNI-PF-38 heat sink is attached using a clip and solder foot method.
