OMAPL138EZCED4E The OMAPL138EZCED4E is a microprocessor with a 456MHz ARM926EJ-S core, designed for embedded applications. It features multiple interfaces including USB, SATA, Ethernet, and LCD display controllers.
Mfr Part #:

OMAPL138EZCED4E

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The OMAPL138EZCED4E is a microprocessor with a 456MHz ARM926EJ-S core, designed for embedded applications. It features multiple interfaces including USB, SATA, Ethernet, and LCD display controllers.
✓ Total Stock: 1,180 pcs
$ Price Range: $21.07

OMAPL138EZCED4E Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
962 pcs
On Request
962 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
218 pcs
On Request
218 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

OMAPL138EZCED4E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Co
Core Processor
Display & Interface Controllers
Ethernet
Frequency
Graphics Acceleration
Lead Spacing
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
SATA
Security Features
Speed
Supplier Device Package
USB
Voltage
View Similar Products (0)

OMAPL138EZCED4E Description

Short technical summary and product information.

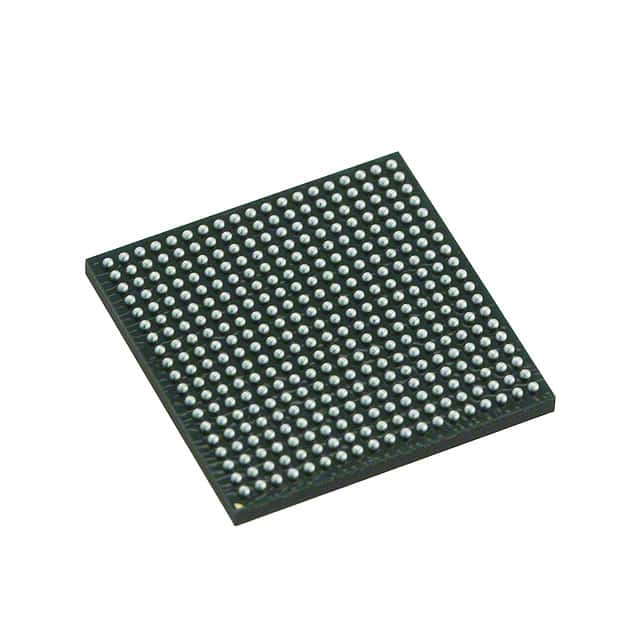

The OMAPL138EZCED4E is an integrated microprocessor manufactured by Texas Instruments. It features an ARM926EJ-S processor core running at 456MHz, with a single 32-bit core architecture. The device supports operating voltages of 1.8V and 3.3V and is packaged in a 361NFBGA form factor suitable for embedded systems.



This microprocessor includes security features such as boot security and cryptography, making it suitable for secure applications. It provides various interfaces, including USB 1.1 and 2.0, SATA 3Gbps, Ethernet 10/100Mbps, and LCD display controllers, enabling versatile connectivity options. The device operates within a temperature range of -40°C to 105°C, suitable for industrial environments.



Designed for embedded applications, the OMAPL138EZCED4E is used in industrial automation, communication equipment, and portable devices. Its architecture includes 16KB instruction and data caches, 8KB RAM, and 64KB ROM, supporting efficient processing and data handling. The package is a 361NFBGA, facilitating surface-mount assembly on printed circuit boards.

OMAPL138EZCED4E Quick Information

Product Type: Microprocessor
Canonical Name: OMAPL138EZCED4E

OMAPL138EZCED4E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

OMAPL138EZCED4E Estimated Pricing

Qty Low High
1+ $21.07 $21.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

OMAPL138EZCED4E Features

  • 456MHz ARM926EJ-S processor core
  • Supports USB 1.1 and 2.0 interfaces
  • Includes SATA 3Gbps interface
  • Operates in -40°C to 105°C temperature range
  • Package in 361NFBGA form factor

OMAPL138EZCED4E Applications

  • Used in industrial automation systems
  • Suitable for communication equipment
  • Ideal for portable embedded devices
  • Supports secure boot and cryptography

OMAPL138EZCED4E FAQs

2 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the OMAPL138EZCED4E?

The operating voltage is 1.8V and 3.3V.

What is the operating temperature range of the OMAPL138EZCED4E?

-40°C to 105°C.
