| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate | |
| GPIO | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current Receiving | |
| Tape & Reel | |
| Type | |
| Voltage |

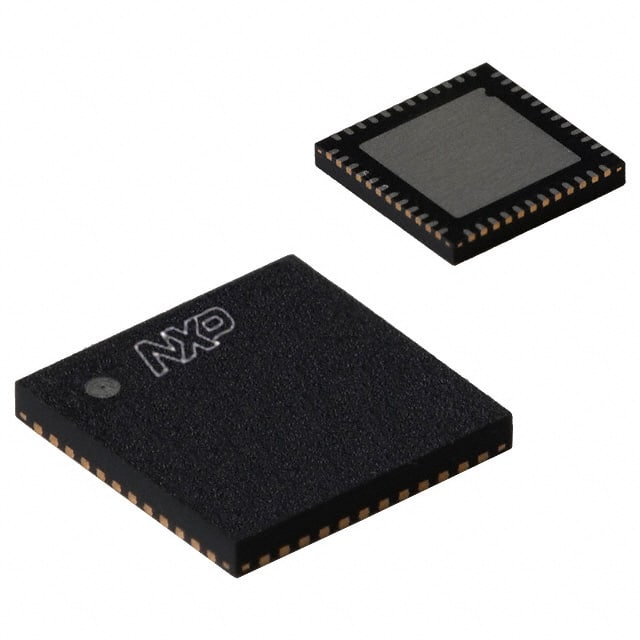

The OL2385AHN/001A1Y from NXP Semiconductors is a fully integrated single-chip transceiver designed for industrial environments. It combines a crystal-stabilized oscillator, a fractional-N PLL, LNA, AGC, I/Q down-mixer, and ADCs for accurate frequency selection and signal processing. The device includes an embedded RISC microcontroller optimized for high performance and low power consumption.
Key electrical specifications include an operating supply voltage range of 1.9V to 5.5V, a maximum output power of 14 dBm, and a receiver sensitivity of -124 dBm. It supports data rates up to 400 kbit/s with ASK and FSK modulation. The transceiver consumes 29 mA during transmission and 11 mA during reception.
This device is suitable for narrowband communication systems and features power ramping and splatter avoidance filters to meet common standards. It interfaces via SPI or UART and is available in a 48-VFQFN exposed pad package, suitable for surface mounting.
The operating temperature range is -40°C to 85°C, making it suitable for demanding applications. The integrated microcontroller and flexible interface options facilitate complex data handling and autonomous operations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 1.9V to 5.5V.
The maximum output power is 14 dBm.
The receiver sensitivity is -124 dBm.
This RF transceiver supports data rates up to 400 kbit/s.
The operating temperature range is -40°C to 85°C.
The OL2385AHN/001A1Y is supplied in a 48-VFQFN exposed pad package.
