| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

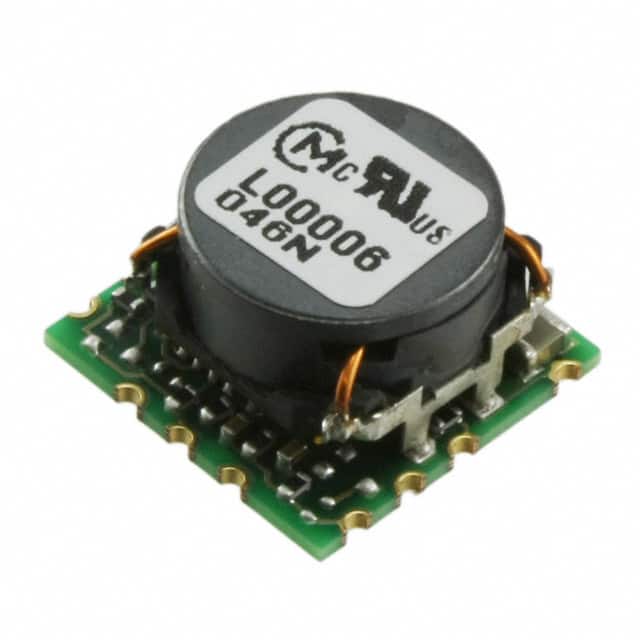

The Murata OKL-T/6-W5N-C is a non-isolated DC/DC converter, also known as a Point-of-Load (PoL) module. It is designed for applications requiring a stable voltage from a wider input range.
Key electrical specifications include a nominal input voltage of 5V, with a range of 2.4V to 5.5V. It provides a single output with an adjustable voltage from 0.6V to 3.3V and a maximum output current of 6A, delivering up to 19.8W of power. The converter boasts a high efficiency of 93.5% and includes control features such as Enable (Active Low) and protection features like OCP, OTP, SCP, and UVLO.
This component is housed in a 12-BLGA Module package and is designed for surface mounting (SMD/SMT). Its dimensions are 12.2mm x 12.2mm x 7.1mm. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.4V to 5.5V.
The output voltage can be adjusted from 0.6V to 3.3V.
The maximum output current is 6A.
The efficiency is rated at 93.5%.
It uses a surface-mount SMD/SMT package.
It operates from -40°C to 85°C.
RoHS compliance status is unverified.
