| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,149 pcs
|
1149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Package / Case Size | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

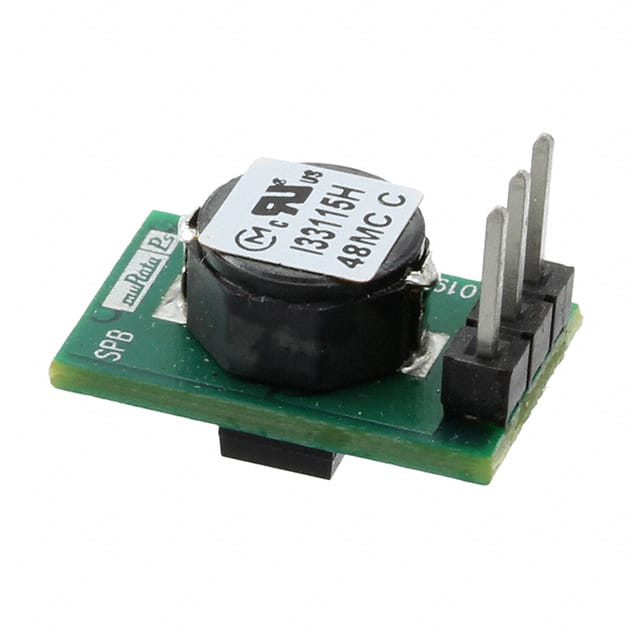

The Murata OKI-78SR-3.3/1.5-W36H-C is a non-isolated DC DC converter designed for various applications. It provides a stable 3.3V output voltage with a maximum current of 1.5A, delivering up to 5W of power.
This converter features a Through Hole mounting type, making it suitable for integration into printed circuit boards. Its compact package dimensions of 16.5mm x 10.4mm x 7.6mm allow for space-efficient designs. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
Key electrical specifications include an input voltage range of 7V to 36V and an efficiency of 85.5%. The device also includes Short Circuit Protection (SCP) for added safety. It is designed for ITE (Commercial) applications and has a single output.
The RoHS status is compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited, indicating standard handling requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 3.3V.
The output current is 1.5A.
The power rating is 5W.
It is mounted using the Through Hole method.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
