| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

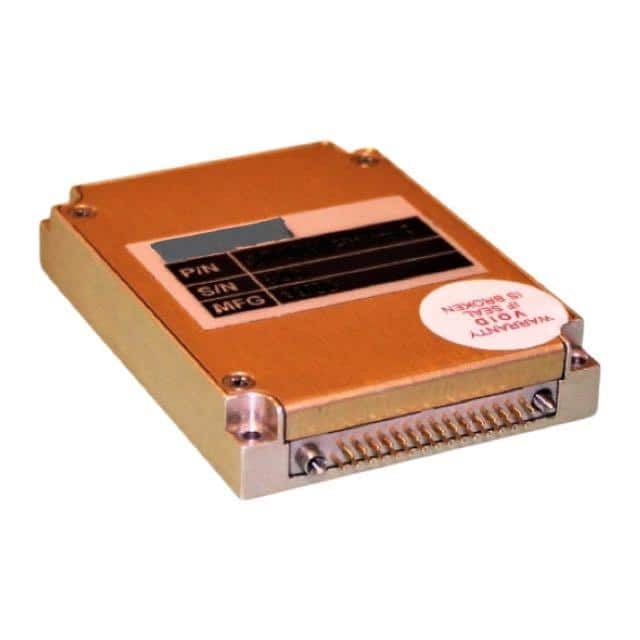

The OHM AMERICAS OHD6-4-1 is a robust DC-DC converter designed for demanding applications. This enclosed unit provides four isolated 28V outputs, delivering a total of 56W of power. It operates reliably within a wide temperature range of -55°C to 85°C and features conduction cooling via its base plate.
Key design features include comprehensive protection mechanisms, such as current limit/fold-back, separate over-voltage protection for each channel, and over-temperature shutdown with auto-recovery. The converter also includes reverse polarity protection and requires no external EMI filter. Its compact dimensions (65mm x 50mm x 12.5mm) and chassis mount type make it suitable for integration into various systems.
With its fully enclosed and conformal coated construction, the OHD6-4-1 is well-suited for harsh environments. The unit utilizes a 20-pin connector for interface and is built for reliability, boasting an MTBF of 150,000 hours.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 to 36 VDC.
The OHD6-4-1 has four outputs, each providing 28 VDC.
Each of the four outputs can provide up to 50 mA.
The operating temperature range is -55°C to 85°C.
The converter uses conduction cooling via its base plate.
It includes reverse polarity protection, current limit/fold-back, over-voltage protection per channel, and over-temperature protection.
