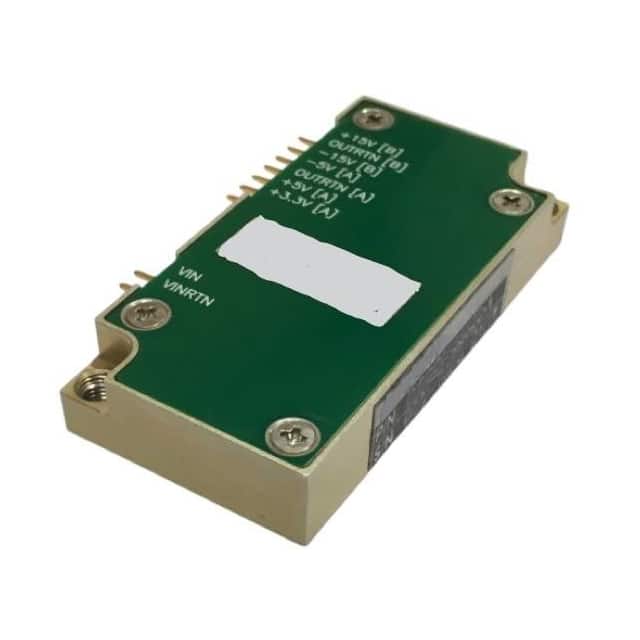

The OHM AMERICAS OHD35-5-2 is a 35W DC-DC converter designed for harsh environments. This fully enclosed unit features conformal coating and conduction cooling via its base plate.
It offers five outputs with separate grounds for two isolated groups, providing flexibility in power distribution. The converter accepts an input voltage range of 18-36 VDC and includes comprehensive protection features such as reverse polarity, under-voltage, over-voltage, overload/short circuit, and over-temperature protection.
Key electrical specifications include an output ripple of 50mV, line/load/temperature regulation of ±1%, and a current limit in hiccup mode. The operating temperature range is -55°C to +85°C, with auto-recovery from over-temperature at 95°C. The unit's dimensions are 60mm x 30mm x 12.5mm, making it suitable for chassis mounting.
This converter is ideal for ITE (Commercial) applications requiring reliable power conversion in demanding conditions. No external EMI filter is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 to 36 VDC.
The output voltage is 15V.
It has a power capacity of 33W.
Yes, it includes reverse polarity protection.
It operates from -55°C to +85°C.
It is RoHS3 compliant.
