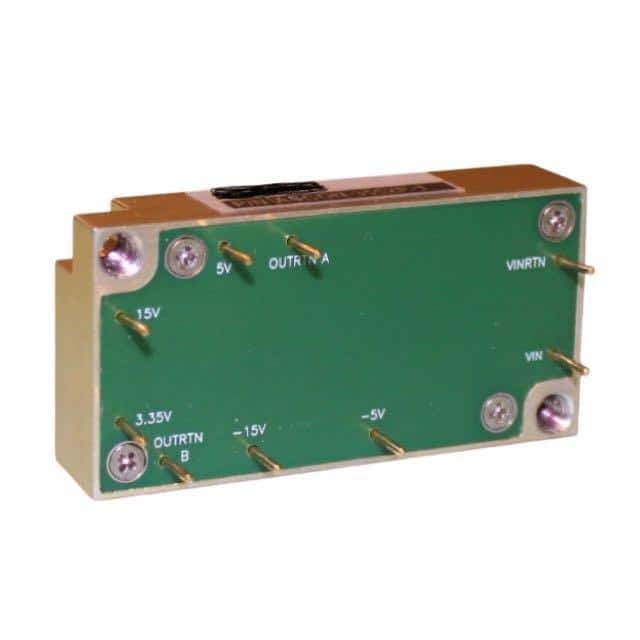

The OHM AMERICAS OHD35-5-1 is a 35W DC-DC converter designed for harsh environments, featuring a fully enclosed and conformal coated construction. This unit offers five distinct outputs with various voltage and current ratings, including +/-5V, 3.3V, and 15V options, with corresponding output currents of 2A, 0.6A, 1.5A, and 0.5A.
With a wide operating temperature range of -55°C to 85°C, the OHD35-5-1 is suitable for demanding applications. It includes comprehensive protection features such as overload/short circuit protection, over-voltage protection on each channel, and over-temperature shutdown. The converter utilizes conduction cooling via its base plate.
Designed for ITE (Commercial) applications, this converter is chassis mountable and does not require an external EMI filter. Its robust design ensures reliability with a base plate MTBF of 150,000 hours. The dimensions are 60mm x 30mm x 12.5mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 to 36 VDC.
The OHD35-5-1 converter has five outputs.
The operating temperature range is -55°C to 85°C.
The power rating is 35W.
The OHD35-5-1 converter uses chassis mount.
