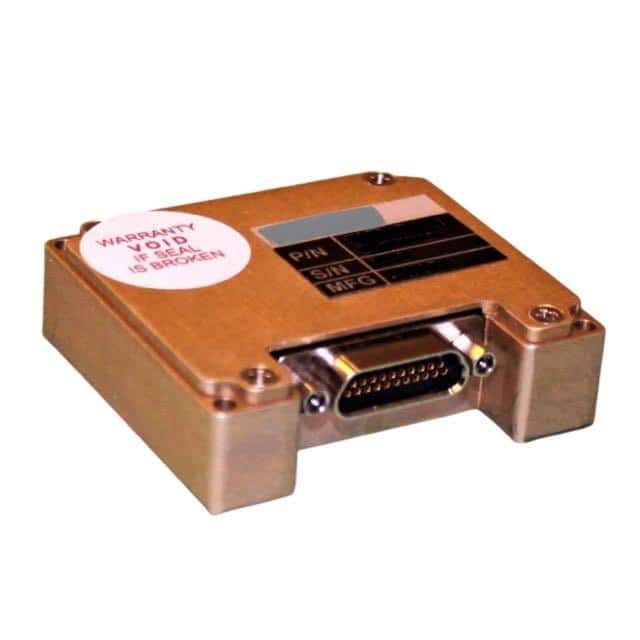

The OHM AMERICAS OHD10-5-1 is a 10W DC-DC converter with an enclosed design, suitable for harsh environments due to its conformal coating. It utilizes conduction cooling through its base plate.
This converter offers five distinct outputs: 5V at 0.5A (Group A), 3.3V at 1.5A (Group B), 2.5V at 0.15A (Group B), 1.25V at 1A (Group B), and another 5V at 0.15A (Group B). The input voltage range is 18-36 VDC, with protections against reverse polarity, under-voltage, and over-voltage conditions. It operates across a wide temperature range of -55°C to 85°C.
Key features include separate grounds for output groups, automatic recovery from current limit and over-temperature conditions, and no requirement for an external EMI filter. The unit is fully protected against overload, short circuits, over-voltage, and over-temperature events. Its compact size of 51mm x 45mm x 14.8mm makes it suitable for various applications.
The OHD10-5-1 is designed for ITE (Commercial) applications and is chassis mountable. It boasts a Mean Time Between Failures (MTBF) of 150,000 hours and can operate at altitudes up to 150,000 ft.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 to 36 VDC.
The OHD10-5-1 converter has five outputs.
The operating temperature range is -55°C to 85°C.
The power rating is 10W.
Yes, each channel has separate OVP, and the unit protects itself above 42VDC.
It uses base plate cooling.
