| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

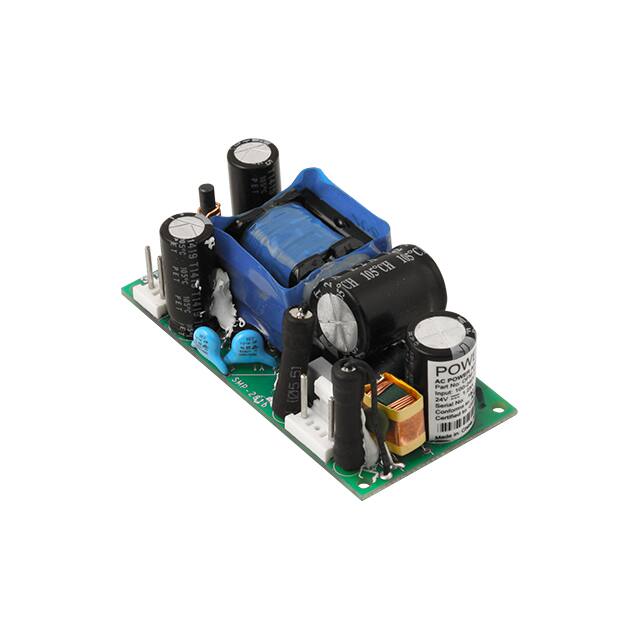

The Powerbox OFM305026 is a 30W single output AC/DC switch mode power supply from the OFM30 series. It operates with a universal input voltage range of 90-264 VAC and provides a stable 15.2V output.
Designed for reliability and performance, this open frame converter boasts up to 88% efficiency and a peak power capacity of 45W. It meets stringent medical approval standards (UL/IEC60601-1) and is suitable for powering medical systems up to CF class.
The unit features superior EMC performance, intelligent over-temperature protection, and an extra low leakage current of less than 10µA. Its compact standard 1.5x3 inch footprint and chassis mount design make it versatile for integration into various systems.
Key electrical specifications include ±1% line and load regulation, ±2.5% voltage tolerance, and a hold-up time of 40ms at 230VAC. The operating temperature range is 0°C to 50°C at full load, with derating available up to 70°C.
The output voltage is 15.2V.
The peak output power capacity is 45W.
The input voltage range is 90-264 VAC.
The efficiency is up to 88%.
The operating temperature is 0°C to 50°C at 100% load, and -10°C to 70°C at 50% load.
Yes, it has UL/IEC60601-1 medical approval.
